ZAC 150W Jewelry Laser Welder 220V Laser Welding for Jewelry 40J Gold and Silver Soldering Machine

Local Offices
Free Shipping
Lifetime Support

$5,099.00 USD

Sale Sold out

Import Duty Included. Free Shipping to Your Door Around 7-9 Days.

Quantity

MAIN FEATURES

INTRODUCTION: ZAC laser welder for jewellery, ideal for Platinum, gold and silver repair and joining in the jewelry industry. Wavelength: 1064nm. Max. Output Power: 150W. Voltage: 220V 1 phase. Welding Depth: 0.1-2.5mm. Pulse Width: 0.1-15ms. Laser Frequency: 0-50HZ. Spot Adjustment Range: 0.2-2mm. Cooling System: Air cooling. Gross weight: 227.1lbs. Dimensions: 39.37*23.62*27.56in.
HIGH EFFICIENCY: With high quality YAG laser source, so that this jewelry welding machine can weld fast with small deformation, small solder joint and small heat affected zone which shows great performance when you weld gold, silver, Platinum, etc. while greatly improve your jewelry making process.
EASY TO USE: The pulse width, frequency, spot of this jewellery laser machine can be adjusted on your needs which can achieve many welding performance. Whats more, we also provide simple English manual instructions and online service so that you can use it under the guidance.
WIDE APPLICATIONS: This laser soldering machine for jewellery machine is widely used in many fields, such as mall parts, rings, pendants, bracelets, dentures, mobile phone charger interfaces, hardware, watches, sporting goods, golf heads, medical equipment. Titanium alloy jewelry, especially used for hole patching of gold and silver jewelry, spot welding seam pattern, inlaid parts and other welding.

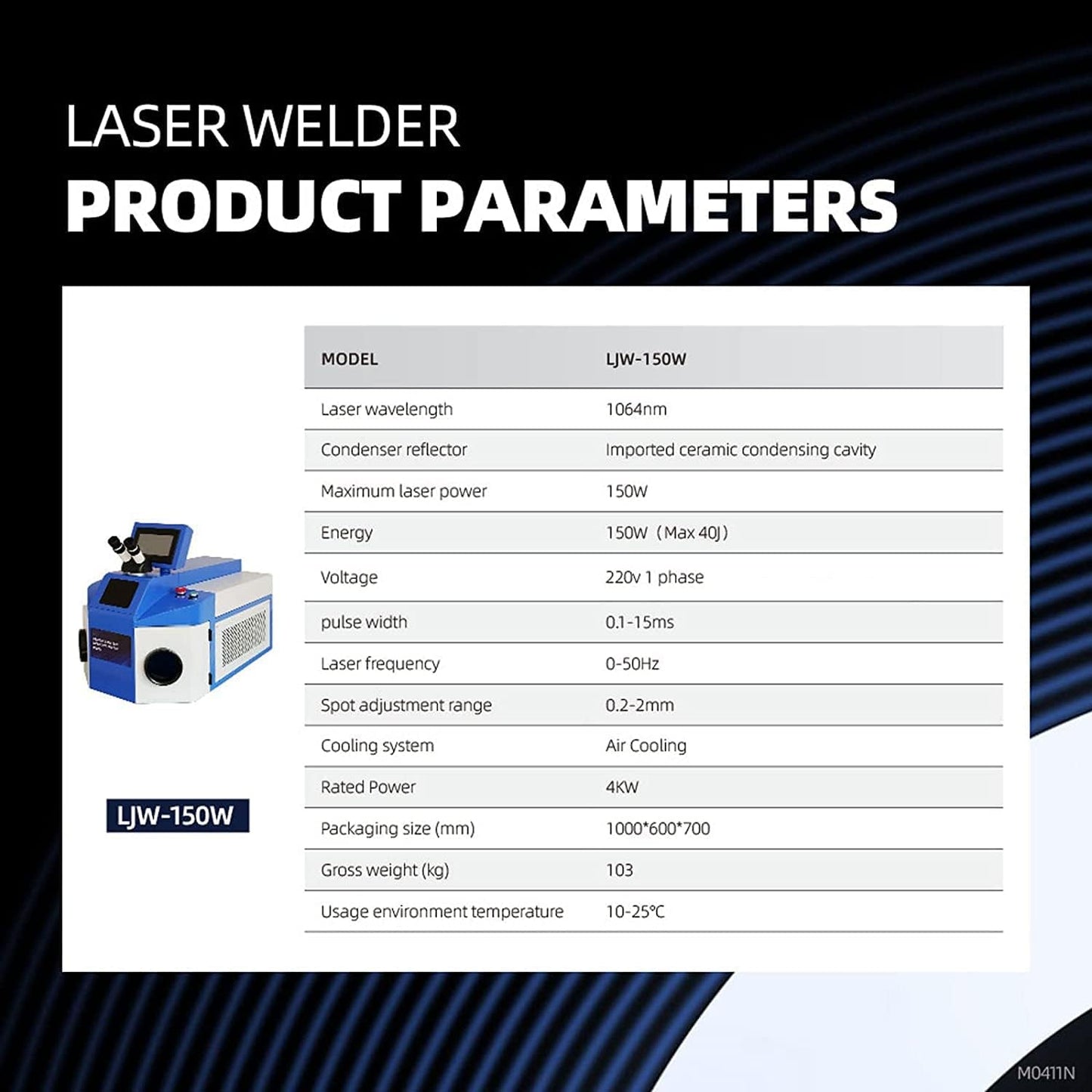

TECHNICAL PARAMETERS

Laser wavelength: 1064nm
Condenser reflector: Imported ceramic condensing cavity
Maximum laser power: 150W
Voltage: 220V 1 phase
Pulse width: 0.1-15ms
Laser frequency: 0-50Hz
Spot adjustment range: 0.2-2mm/0.3-2.5mm
Cooling system: Air cooling/Built-in water cooler 1P
Rated power: 4KW/6.5KW
Packaging size: 39.37*23.62*27.56in.
Gross weight: 227lbs
Usage environment temperature: 10-25°C/10-30°C

CARING WARRANTY

We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email, and our 24 hours customer service will support you.
