MAIN FEATURES

•  INTRODUCTION: ZAC broken tap remover, can fast remove M2-M30(5/64'' to 1-3/16'') broken taps, broken bolts, drill bits, screws without damaging threads and workpiece. Input Voltage: 110V. Output Power: 2000W. Electrode Chuck Diameter: 0.8-10mm. Max Process Depth of Spindle Servo: 70mm. Max Process Depth 70mm/2.78in. Work Liquid: Tap Water. Machine Dimension: 11.8*19.7*19.7in. Net Weight: 30.87lbs.
•  HIGH EFFICIENCY: Different from traditional broken tap extractor tools and kits, this kind of tap disintegrator edm machine can save much time and and labor energy because the depth can be set and it can achieve auto retract and alarm Depth setting. And the reset button can be used for stuck spindle which can highly improving your working efficiency.

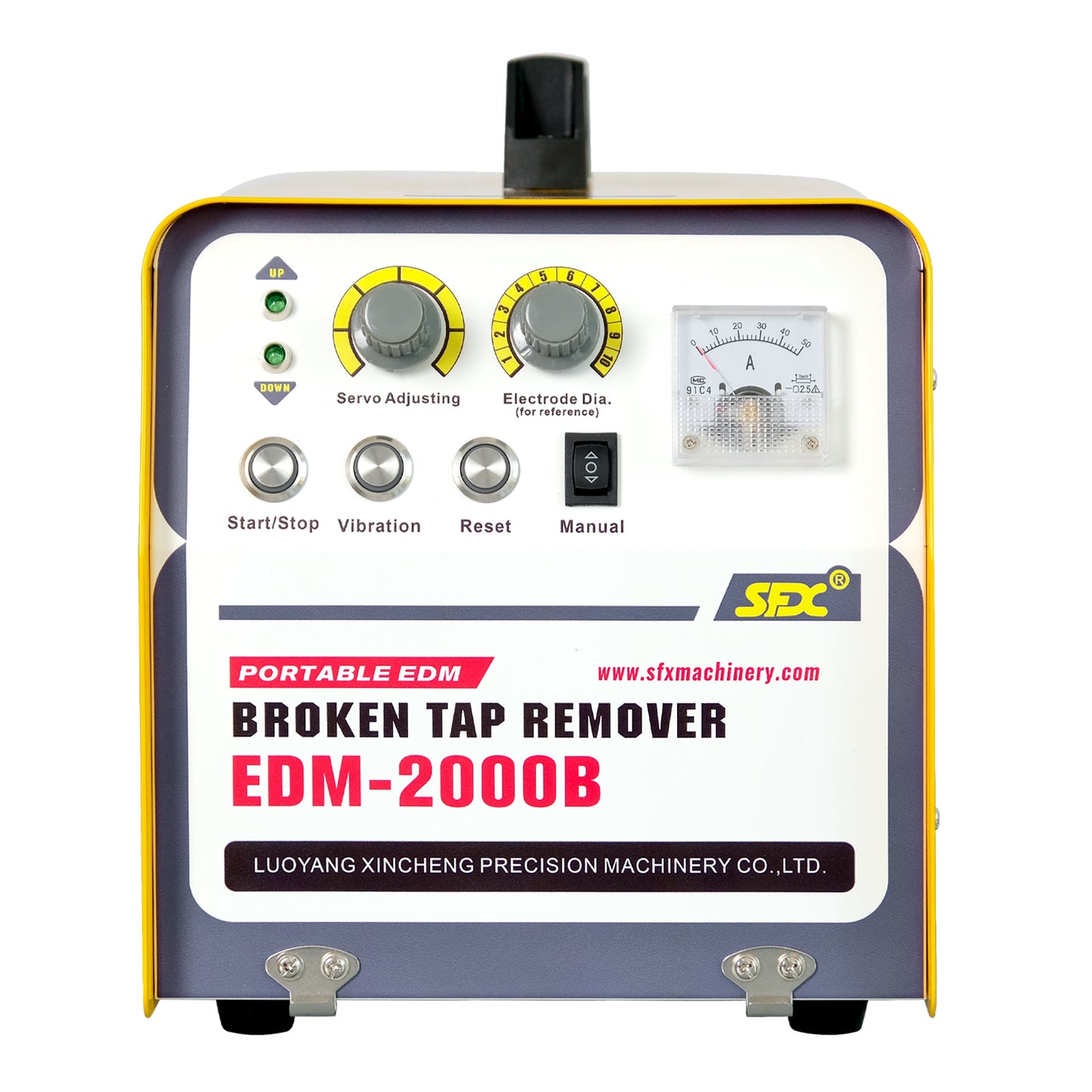

•  EASY TO OPERATE: This EDM machine can be operated easily that you only need to turn on switches and adjust current and then the broken taps can be easily removed from the workpiece. Besides, the small volume and lightweight design make it easily process on large or heavy work and help improve removing efficiency without space limitations.

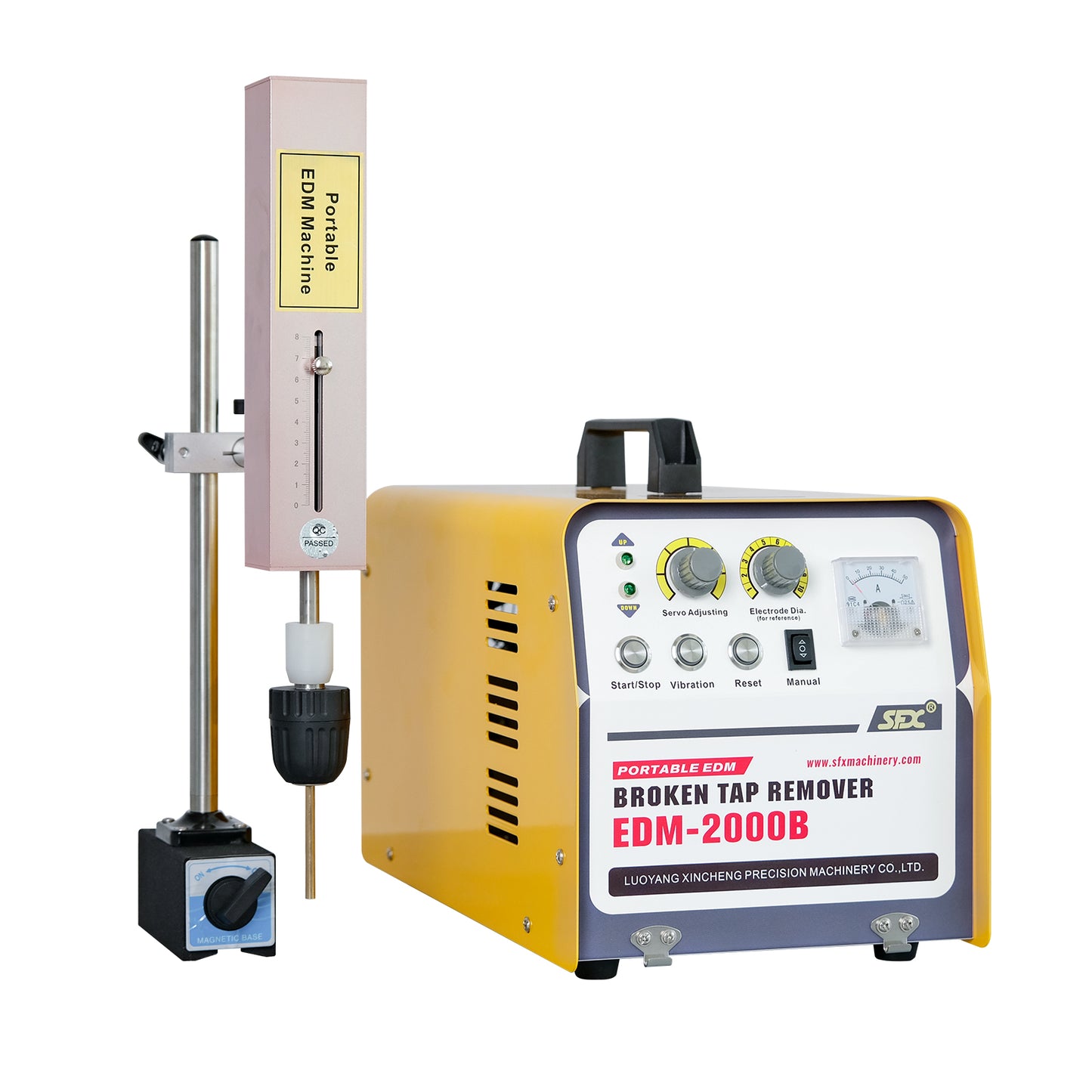

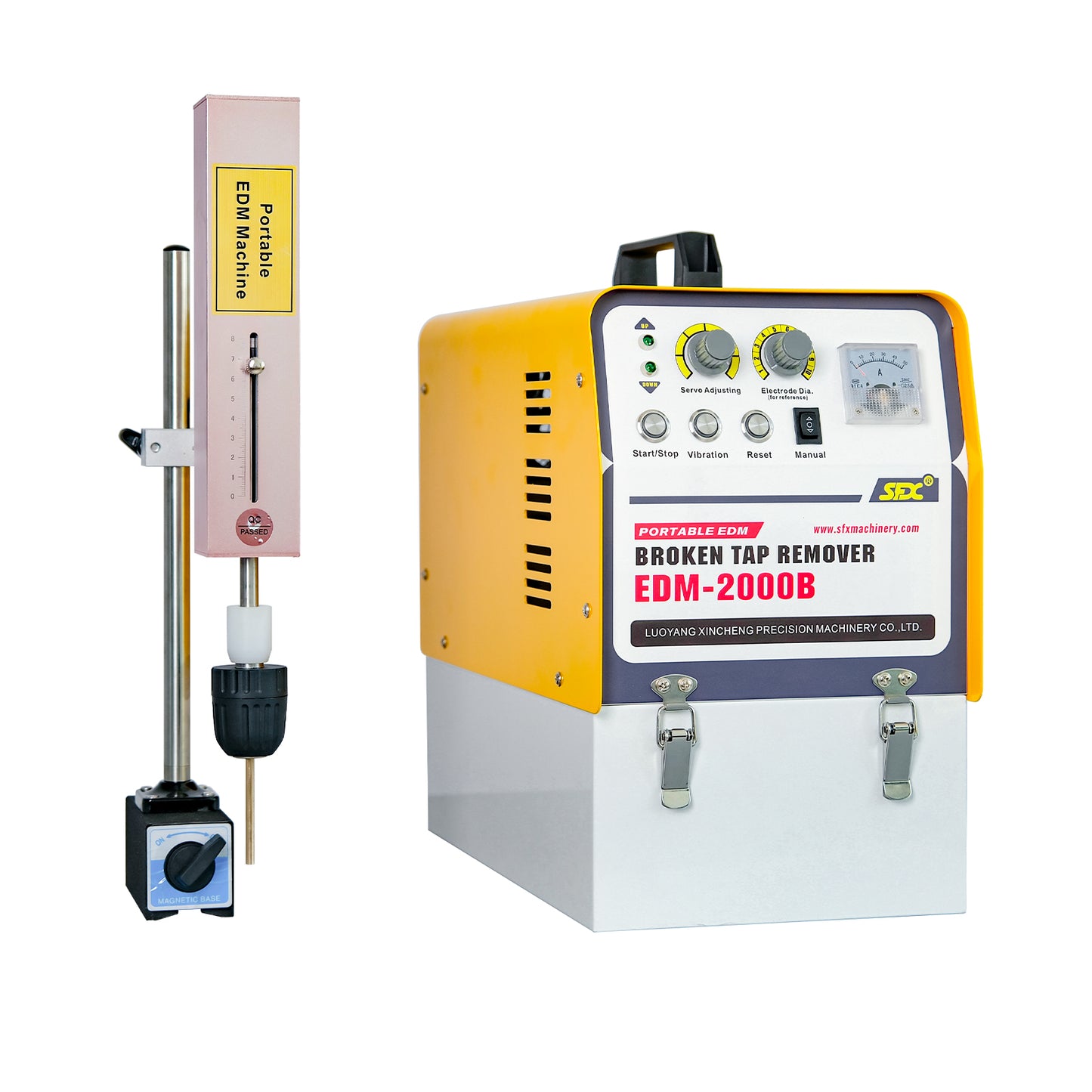

•  PREMIUM QUALITY: With seperated workhead, the processing direction can be 360°adjusted to fit the workpiece. Adopts magnetic base and cross connector to support the workhead which provides you more stable working process. Suitable for various workpieces and machine shop, heavy equipment repair, aircraft, auto/truck repair, etc.

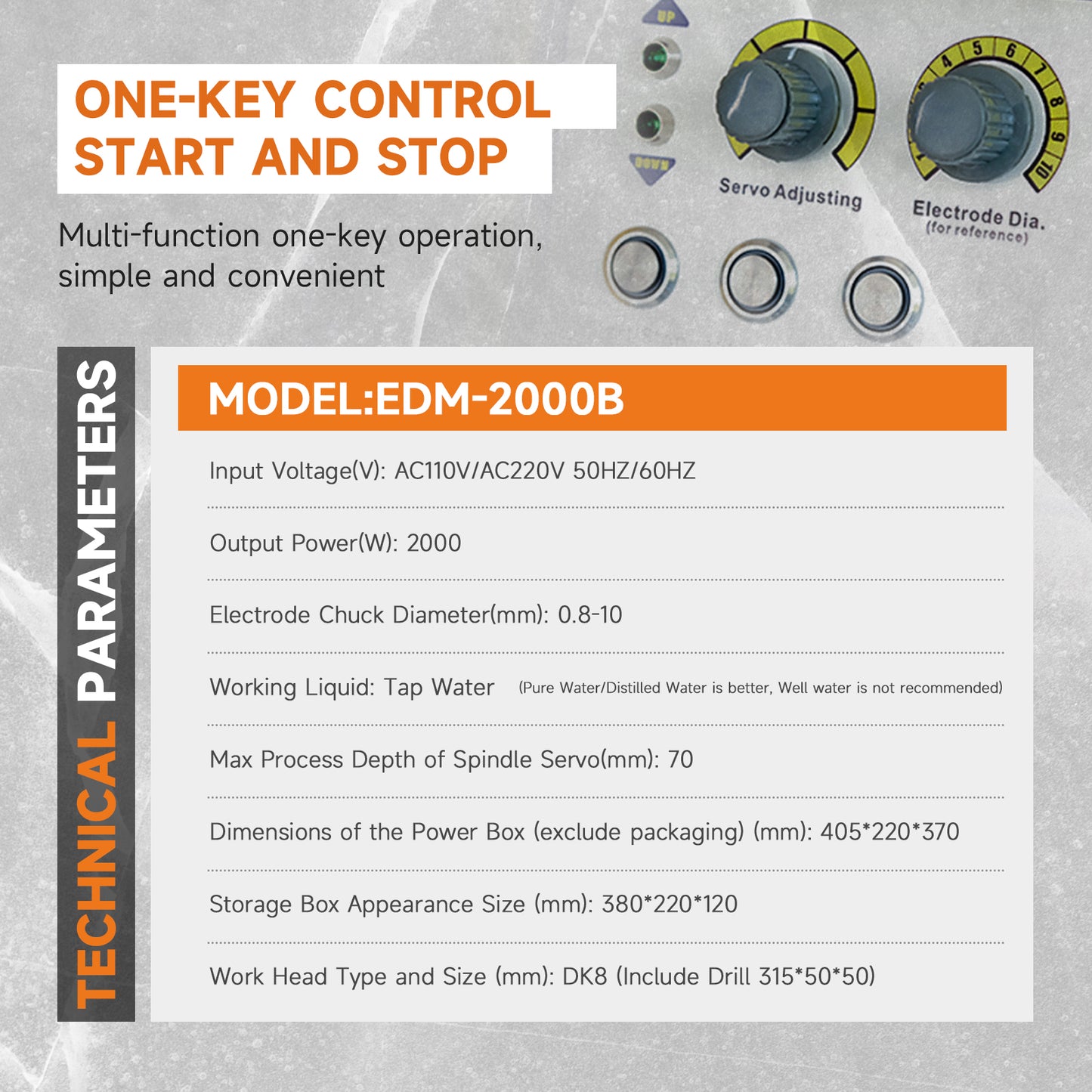

TECHNICAL PARAMETERS

• Model: EDM-2000B

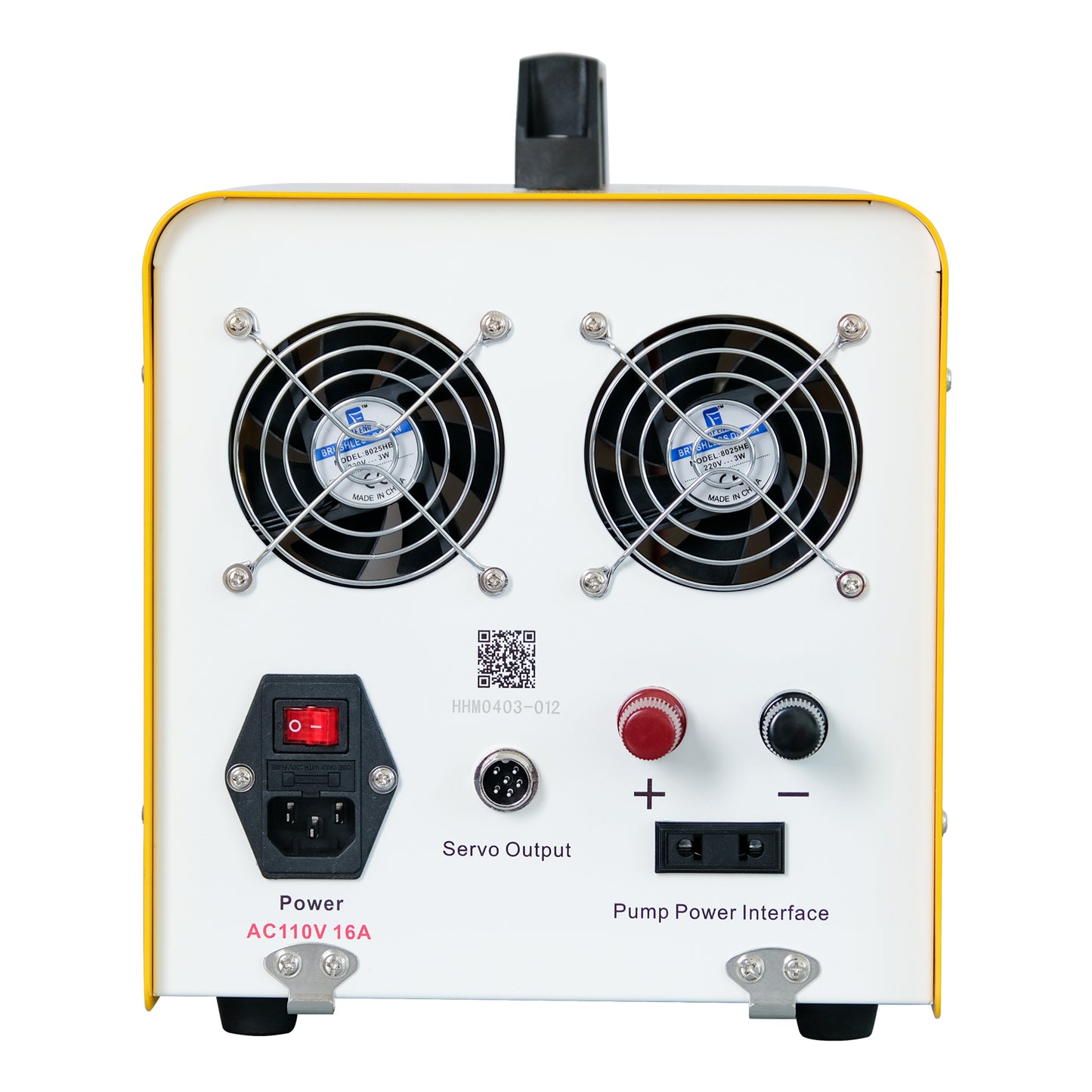

• Input Voltage (V): AC110V/AC220V 50HZ/60HZ

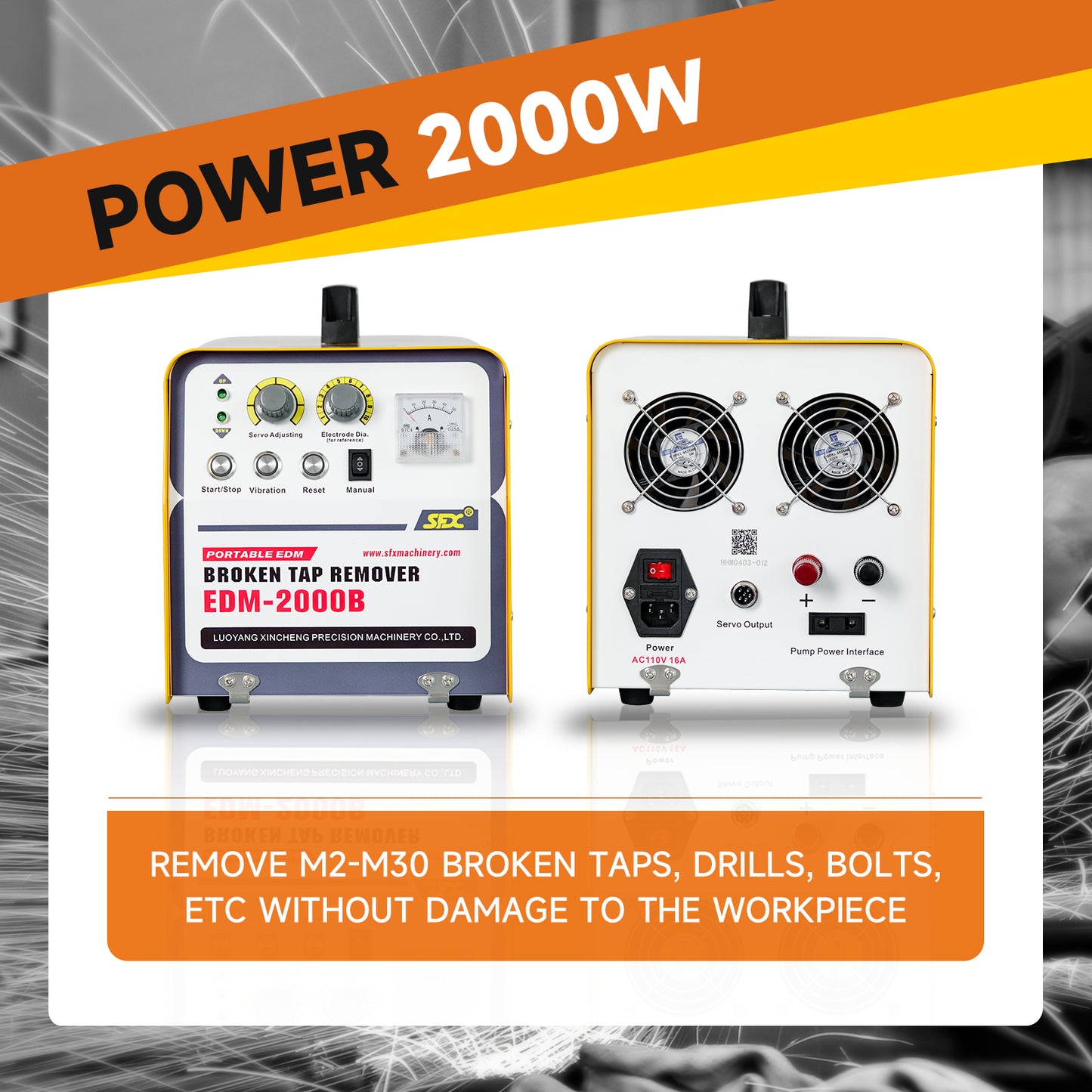

• Max. Output Power (W): 2000W
• Electrode Chuck Dia. (mm): Φ0.8-10mm
• Working Liquid: Tap Water (Pure water/Distilled water is better)
• Power Box Size (in): 15.9 x 8.7 x 14.6 in

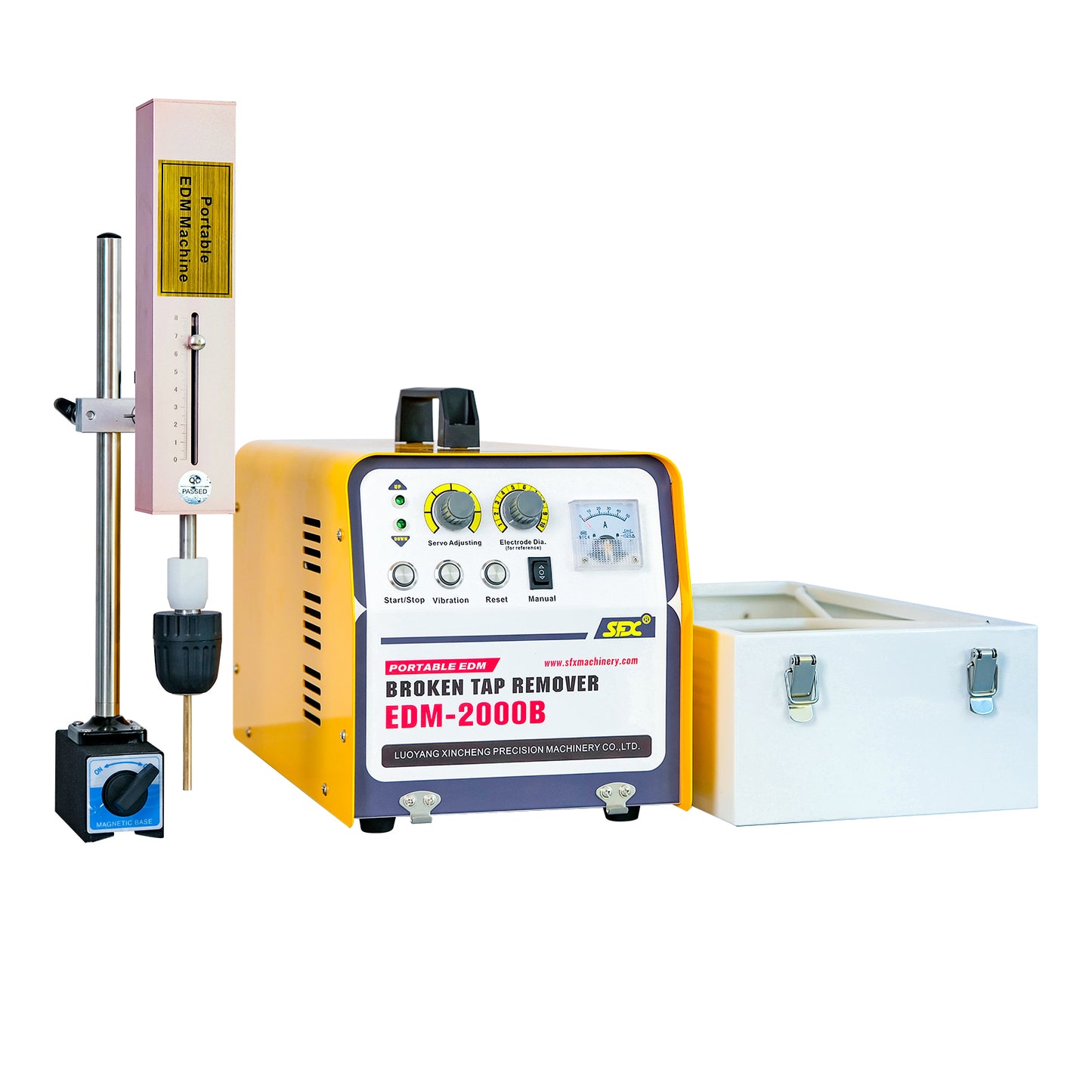

• Storage Box Size (in): 15 x 8.7 x 4.7 in
• Work Head Size (in): DK8 12.4 x 2 x 2 in
• Removing Size: M2 to M30 (5/64'' to 1-3/16'')

CARING WARRANTY

We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email via email, and our 24 hours customer service will support you.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS) about 7-10 Days
• No Import Duty for American Customers.
