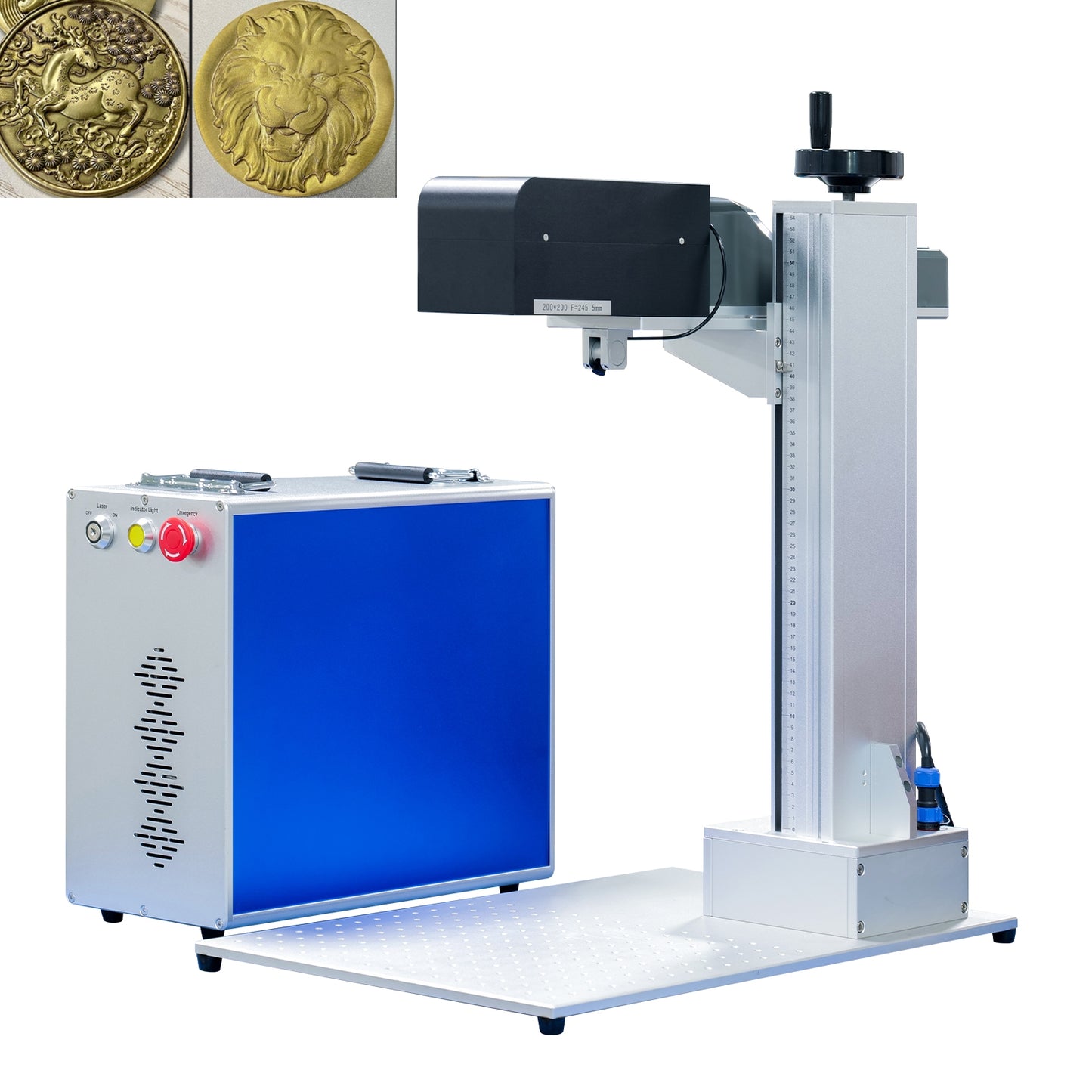

ZAC 3D Fiber Laser Engraver Machine JPT MOPA M7 Fiber Laser Marking 60W/80W/100W for Large Field Curved Surface Marking

Local Offices
Free Shipping
Lifetime Support

$17,099.00 USD

Sale Sold out

Import Duty Included. Free Shipping to Your Door Around 7-9 Days.

Laser Power 60W 80W 100W

Marking Area 100 x 100mm(4 x 4in) 200 x 200mm(8 x 8in)

Quantity

MAIN FEATURES

INTRODUCTION: ZAC 3D fiber laser engraver, different from the normal 2D fiber laser engraver machine which adopts advanced optical design scheme, which has small light loss, small volume, high positioning accuracy, fast marking speed and is strong anti-interference. Laser Power: 60W/80W/100W. Marking Area: 100 x 100mm(4 x 4in)/200 x 200mm(8 x 8in). Package Dimention: 30.9*19.09*35.43in(L*W*H). Gross Weight: 150lbs.

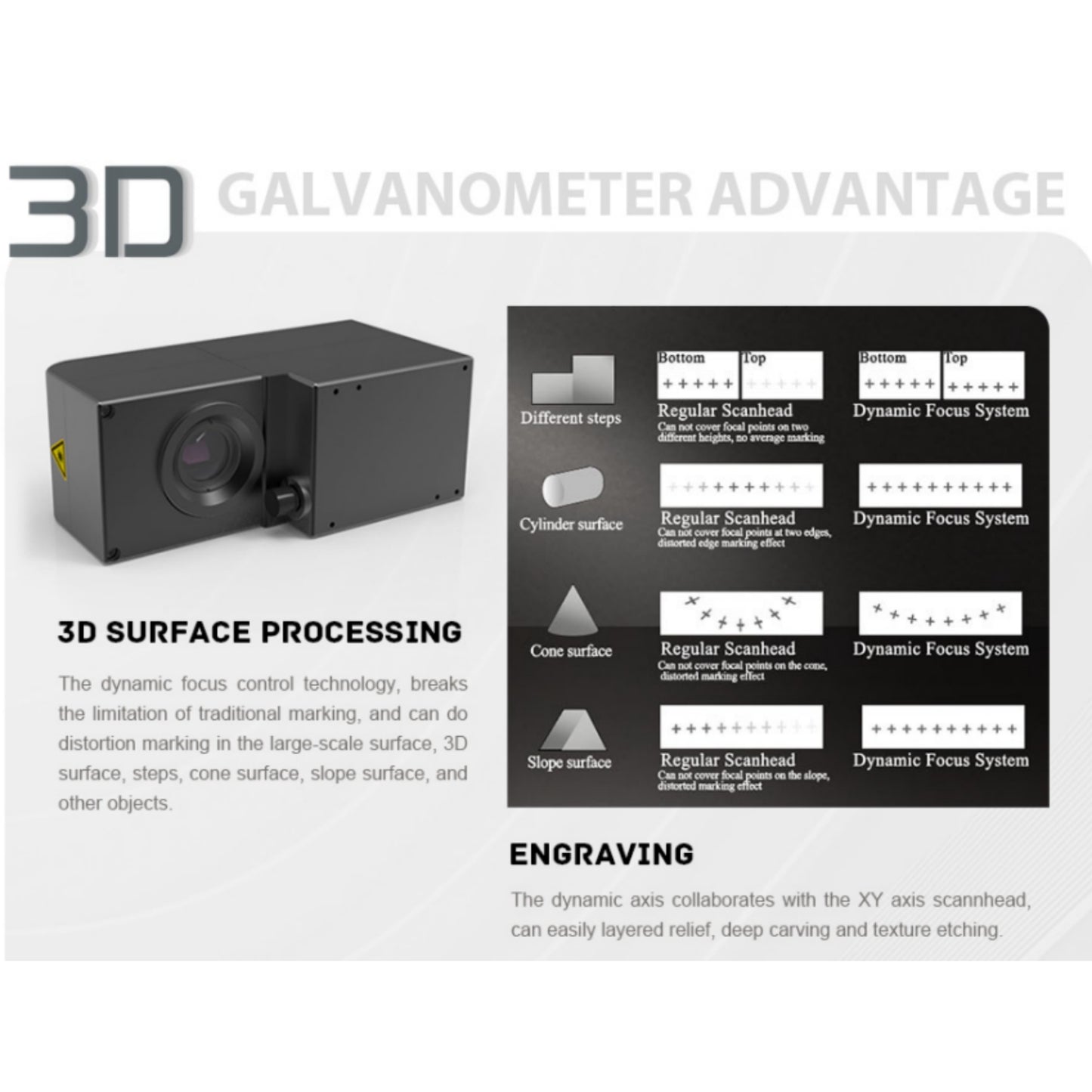

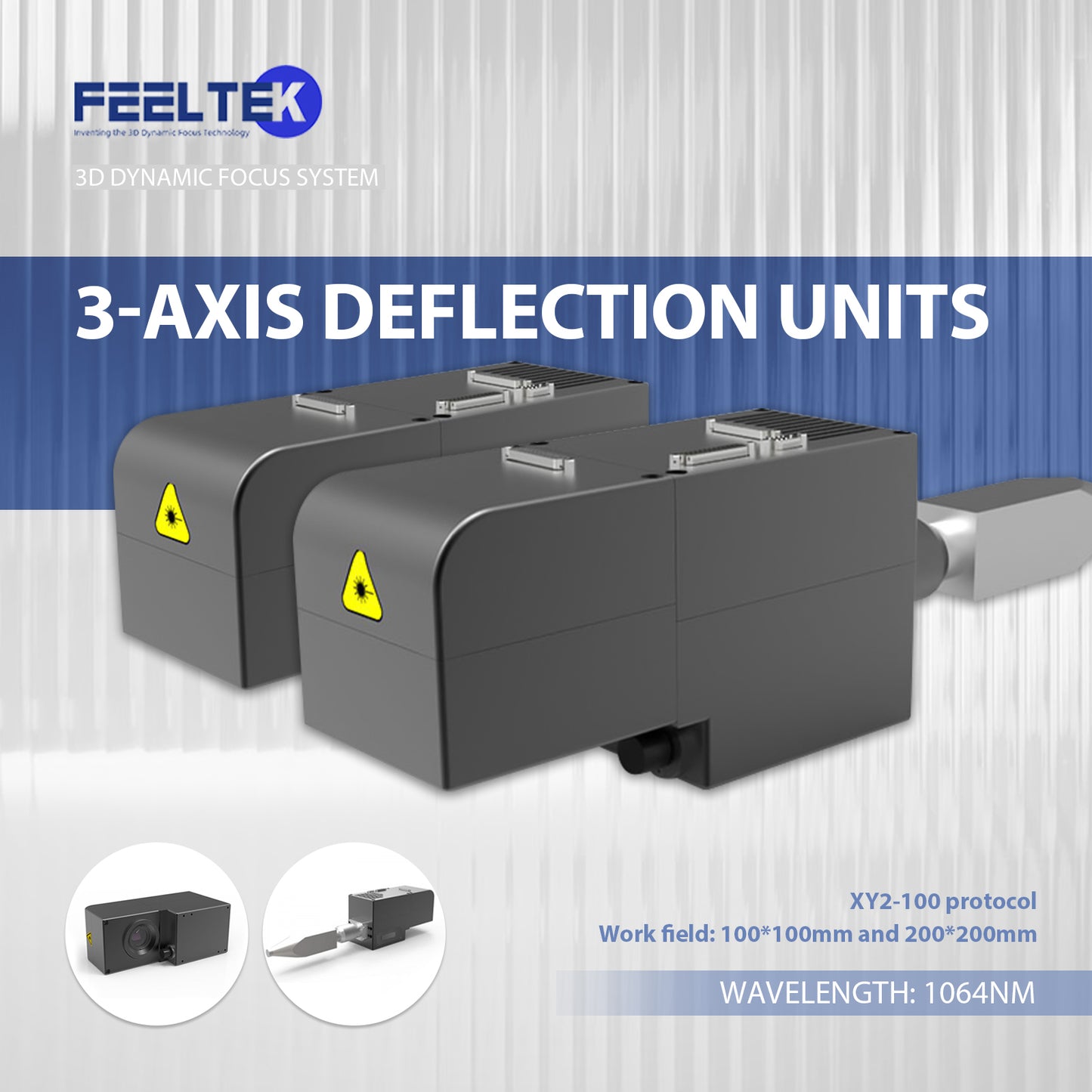

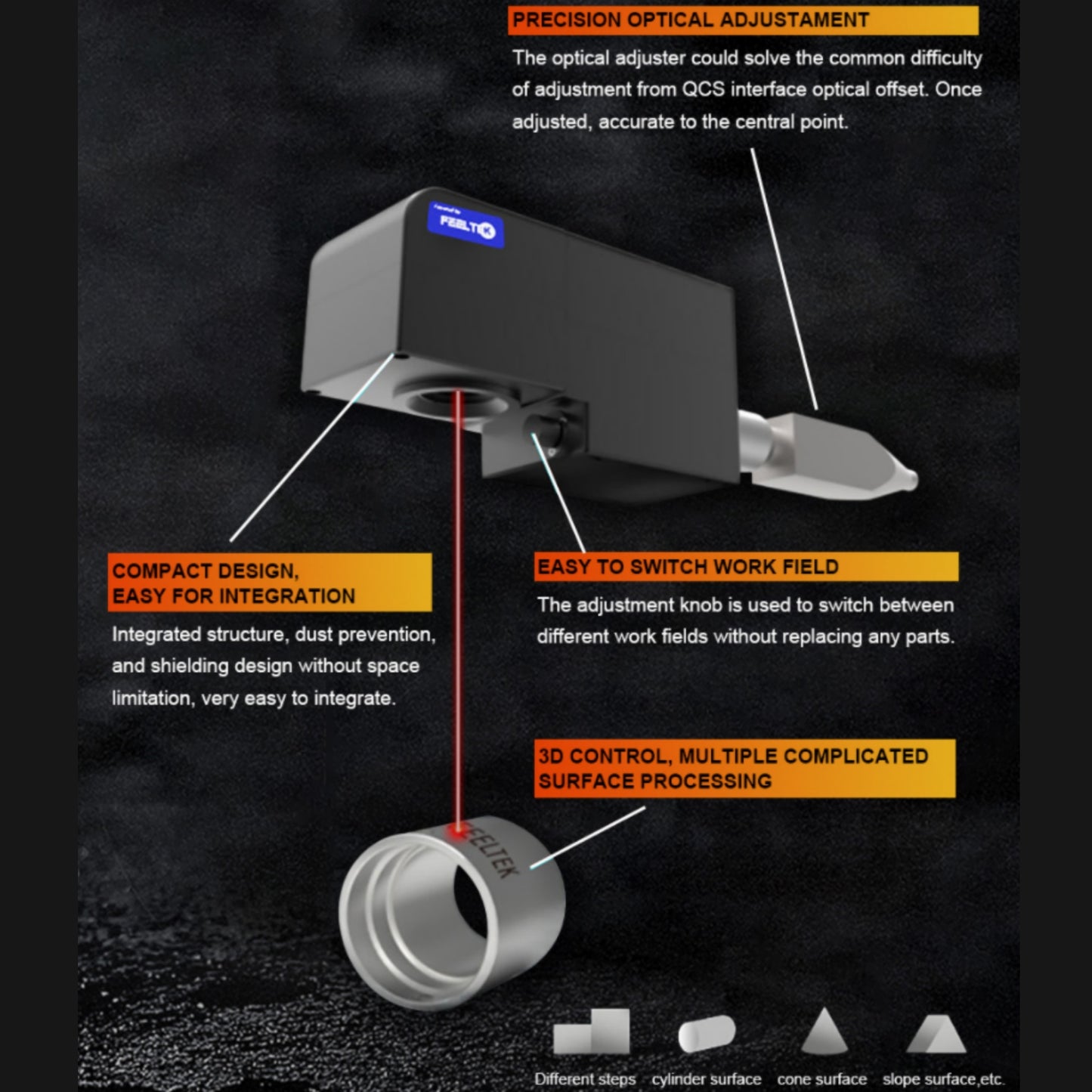

HIGH EFFEICIENCY: This 3D fiber laser engraving machine can meet above 3000m/s precision hatch speed. Adopted high quality JPT MOPA M7 laser source, the wavelength is ONLY 1064nm which can realize precise ultra-fine processing. Besides, the 3D laser engraver also adopted well known FEELTEK 3D lens which adopts dynamic focus control technology and break the of traditional engraving and can do distortion marking on 3D surface, steps, cone surface, slope surface and other objects.
EASY TO USE: The fiber laser marking machine can control the focal length position of laser marking machine, automatically adjust Z-axis for 3D deep marking process, keep the spot size to minimum, ensure the uniform graphic effect after marking on the object. Adopted LenMark 3D software system to support various file formats, vector, bitmap andtext bar code import, which is easy to learn and operate.

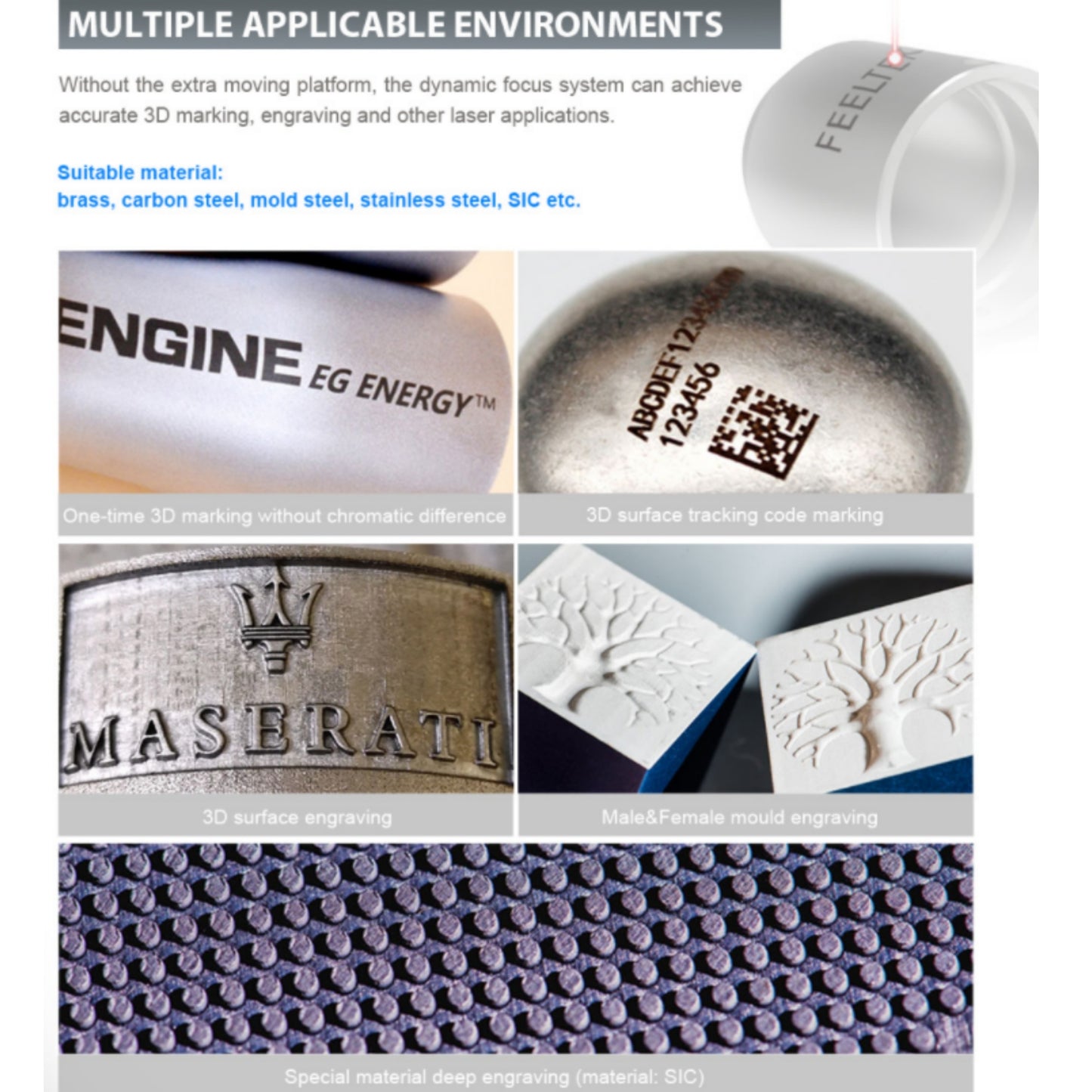

WIDE APPLICATIONS: The life of fiber laser marking machine is about 100,000 hours which is suitable for many materials and industries, such as Arclic, Plastics, Glass, Marble, Tile, Aluminum, Copper, Silver, Gold, Brass, Titanium, Steel, etc.

TECHNICAL PARAMETERS

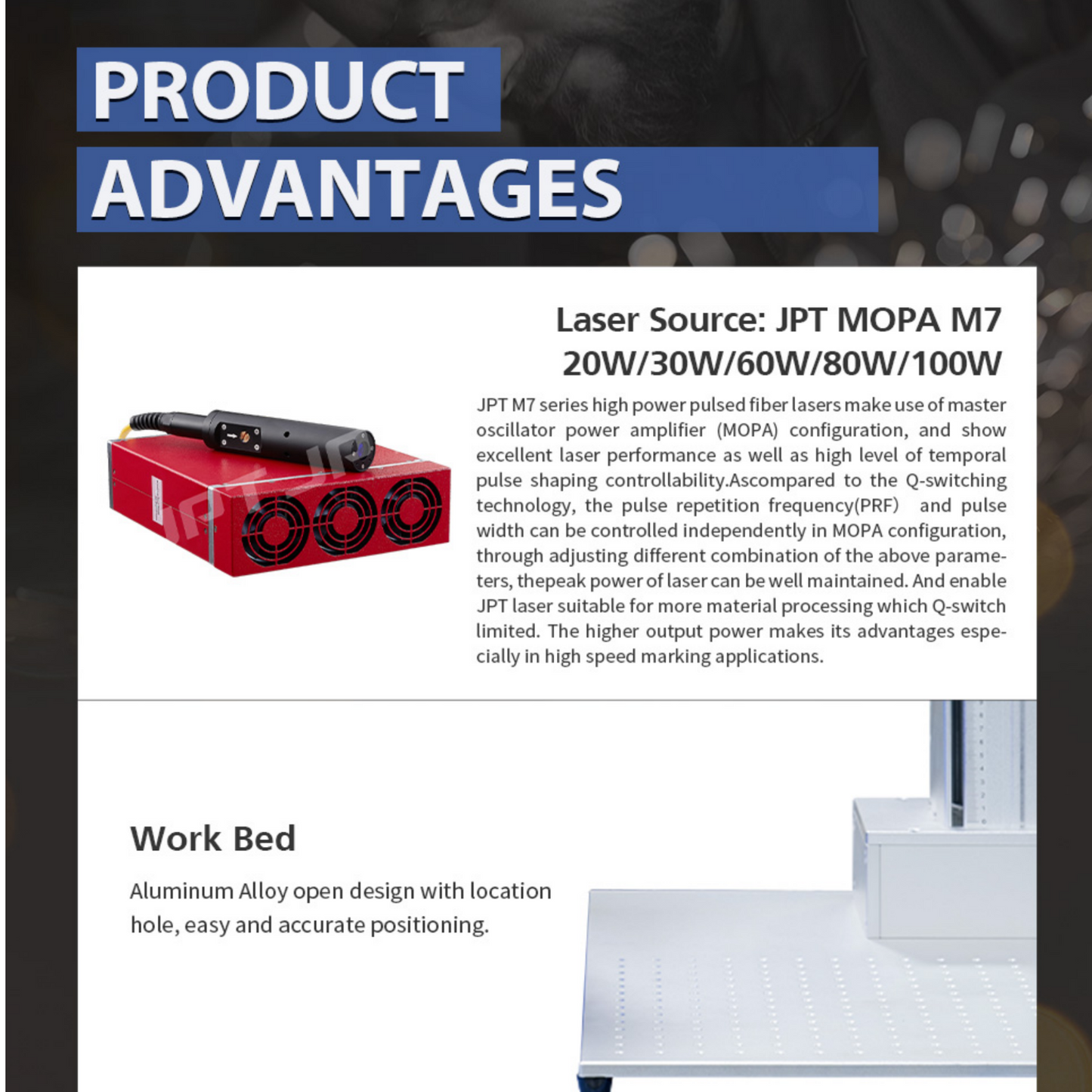

Laser Source: JPT MOPA M7(C)
Marking Area: 100 x 100mm(4 x 4in)/200 x 200mm(8 x 8in)
Frequency: 1-400kHz
Pulse Duration: 2-500ns
Output Power Adjustment Range: 10%-100%
Marking Speed: ≤ 7m/s(275.6in/s)
Engraving Depth: ≤ 1.2mm(0.008in)
Minimum Line Width: 0.01mm(0.0004in) Depends on the material
Minimum Character: 0.2mm(0.0008in)
Electrical Requirements: 110V-240V/50Hz-60Hz(according to local elecreicity supply)
Power Consumption: 1200W/1300W/1500W
Marking Interface: USB connection. Compatible with Windows XP/Vista/7/8/10
Communication Mode for Automation: TCP/IP,IO, RS232
Marking Content: barcodes, serial numbers, text, vector, and logos.
Red Dot Pointer: Since the laser beam is incisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.

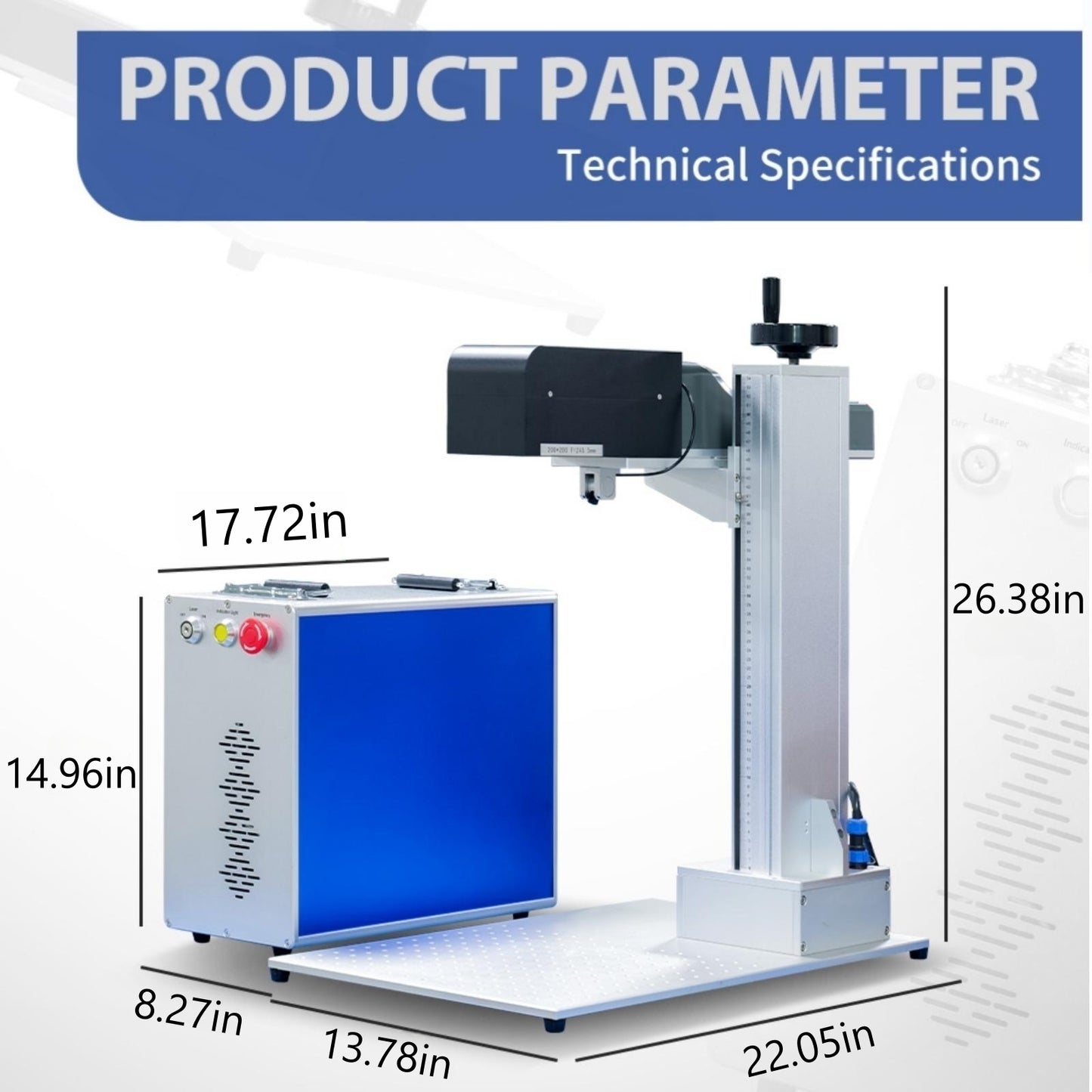

Package Dimension: 30.9*19.09*35.43in(L*W*H).
Gross Weight: 150lbs.

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.
