MAIN FEATURES

• The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD. Compatible with Lighburn.
• The machine can directly use SHX, TTF fonts. Automatic encoding, printing serial number,batch number, date, barcode, QR code, automatic jump number, etc supported.
• Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, lightbutton, ABS, PVC, PES,etc.
• Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

TECHNICAL PARAMETERS

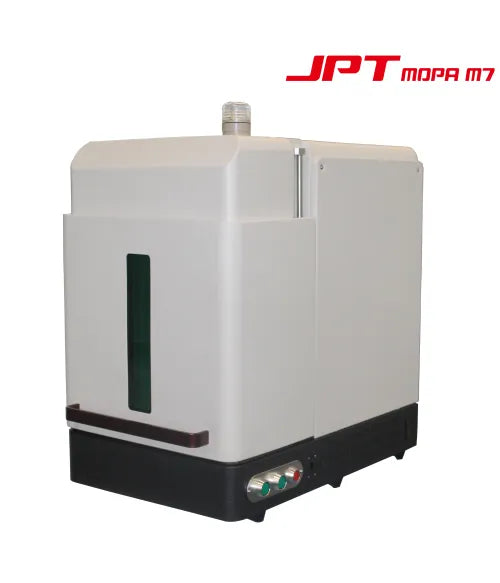

• Laser Source: 20W/30W/60W/80W/100W JPT MOPA M7 YDFLP-E-M7-M-R
• Marking Area: 70*70mm/110*110mm/150*150mm
• Max. Material Thickness: 300mm/250mm/206mm
• Repetition Rate(Frequency): 1-4000kHz
• Pulse Duration: 2-350ns(20W/30W); 2-500ns(60W/80W/100W)
• Maximum Pulse Energy: 0.8mj(20W/30W); 1.5mj(60W/80W/100W)
• Software: EZCAD2(compatible with lightburn)/EZCAD3. Support WIN7/8/10 System
• Output power adjustment range 10%-100%
• Marking Speed: 7m/s
• Engraving Depth:20W≤0.2mm/30W≤0.4mm/50W≤1.0mm/60W≤1.5mm
• Min. Line Width: ≤0.01mm（Depends on the material)
• Min. Character: 0.2mm（Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Power Consumption: 500W/800W/1000W
• Communication Mode for Automation TCP/IP, IO,RS232

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by FedEx/DHL/UPS.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS/Fedex) about 7-15 Days
• No Import Duty for American Customers.
