ZAC JPT Handheld 20W/30W/50W Fiber Laser Engraver Laser Marking Machine with EZCAD2.0

ZAC JPT Handheld 20W/30W/50W Fiber Laser Engraver Laser Marking Machine with EZCAD2.0

  • US Local Offices
  • Free Shipping
  • Premium Support
Regular price $4,249.00 USD
Regular price Sale price $4,249.00 USD
Sale Sold out
Tax included. Free Shipping to Your Door Around 7-9 Days.
Laser Power
Lens

MAIN FEATURES

  • Genuine JPT LP laser source with 2 years warranty. Genuine Software EZCAD2, support WIN XP/Vista/7/8/10/11 System. Original BJJCZ Control Card . Galvo scanner: SINO-GALVO. Control board: JCZ-LMCV4.
  • Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.Min. Line Width: 0.01mm (0.0004in) depend on material Min. Character: 0.2mm(0.0008in) depend on material Marking contents: barcodes, serial numbers, text, vector, and logos.

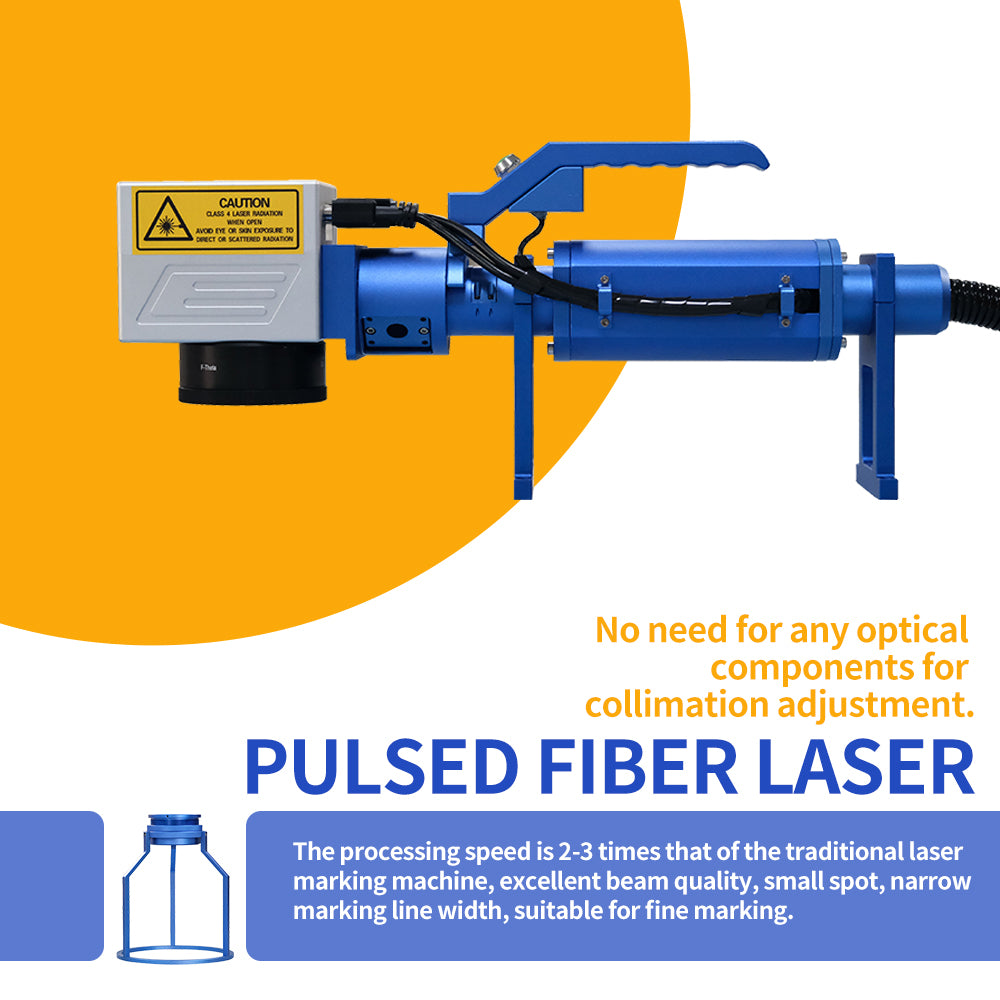

  • Good at marking on large-szie workpiece or work from different angles; Pulsed fiber laser, realize excellent beam quality; Full air cooling, low cost, maintenance-free, no consumables,energy saving, small and exquisite.

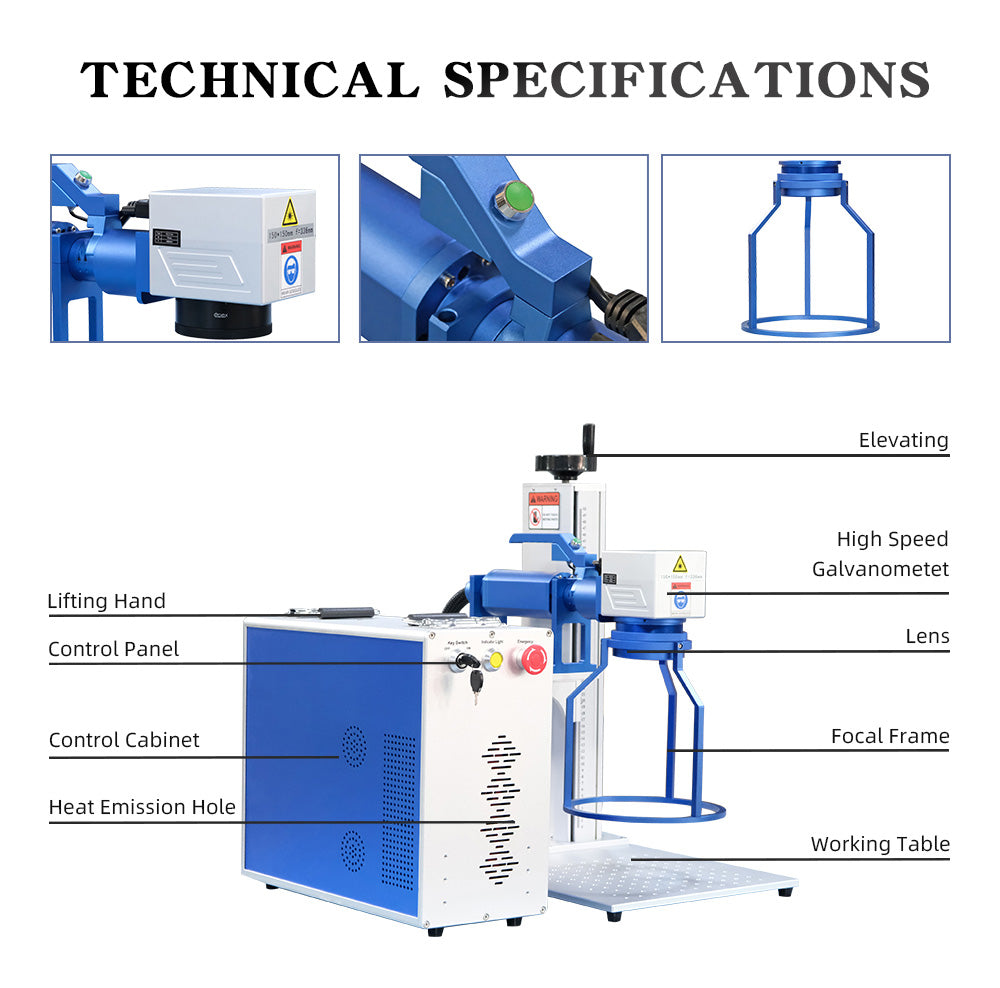

TECHNICAL PARAMETERS

  • Marking Area: 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)175*175mm(6.9*6.9in)
  • Maximum Material Thickness: 300m(11.8in)@110*110mm/250mm(9.8in)@150*150mm/206mm(8.1in)@175*175mm
  • Laser Type/Pulse Duration: JPT/200ns
  • Repetition Rate(Frequency): 1-600kHz@JPT LP
  • Output Power Adjustment Range: 10%-100%
  • Marking Speed: ≤7m/s(275.6in/s)
  • Engraving Depth: ≤0.2mm(0.008in)/≤0.4mm(0.016in)/≤1mm(0.024in)
  • Minimum Line Width: 0.01mm(0.0004in) depends on the material
  • Minimum Character: 0.2mm(0.0008in) depends on the material
  • Electrical Requirements: 110V-240V/50Hz-60Hz(According to local electricity supply)
  • Power Consumption: 500W/800W/1000W
  • Marking Interface: USB connection. Compatible with Windows XP/Visa/7/8/10/11
  • Automated Communication: TCP/IP, IO, RS232
  • Marking Content: barcodes, serial numbers, text, vector, and logos.
  • Red Dot Pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.

DELIVERY

  • Remote Assistance for operation issues
  • Lifetime Online Technical Support
  • Free Shipping to Your Door by Air (DHL/UPS) about 7-15 Days
  • No Import Duty for American Customers.
