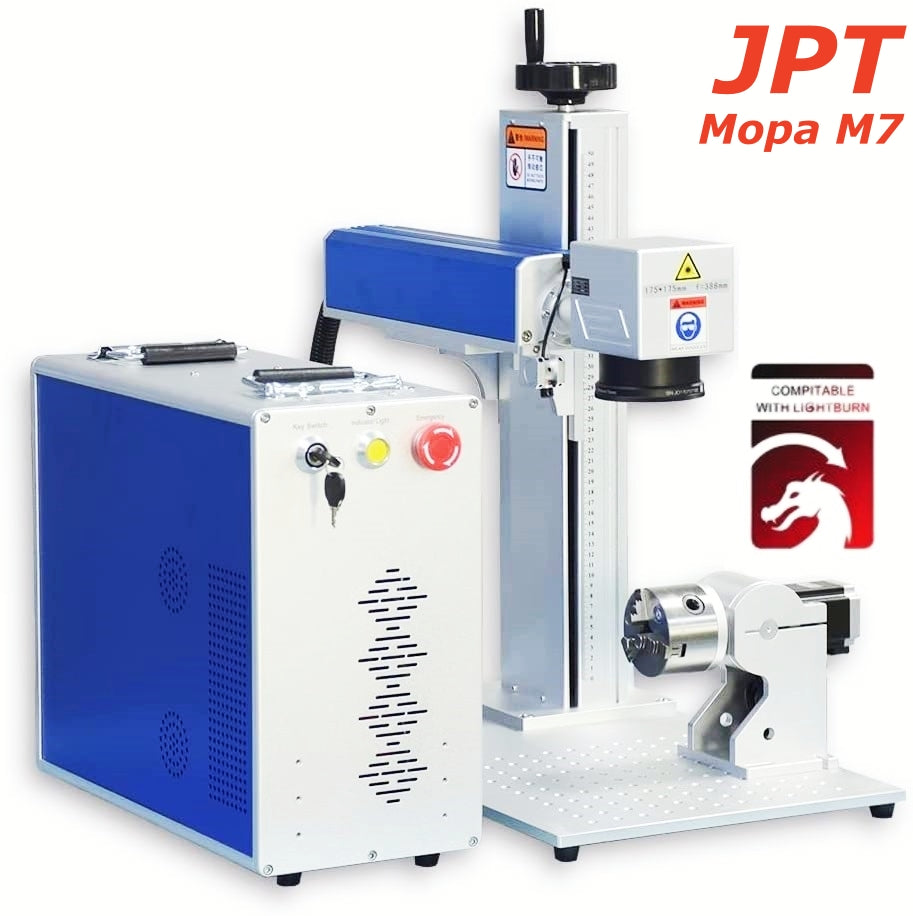

ZAC Fiber Laser Engraver Machine 20W/30W/60W/80W Split YDFLP-E-M7-M-R JPT MOPA M7 with EZCAD2.0

ZAC Fiber Laser Engraver Machine 20W/30W/60W/80W Split YDFLP-E-M7-M-R JPT MOPA M7 with EZCAD2.0

  • Local Offices
  • Free Shipping
  • Lifetime Support
Regular price $5,379.00 USD
Regular price Sale price $5,379.00 USD
Sale Sold out
Free Shipping to Your Door Around 7-9 Days.
Laser Power
Lens

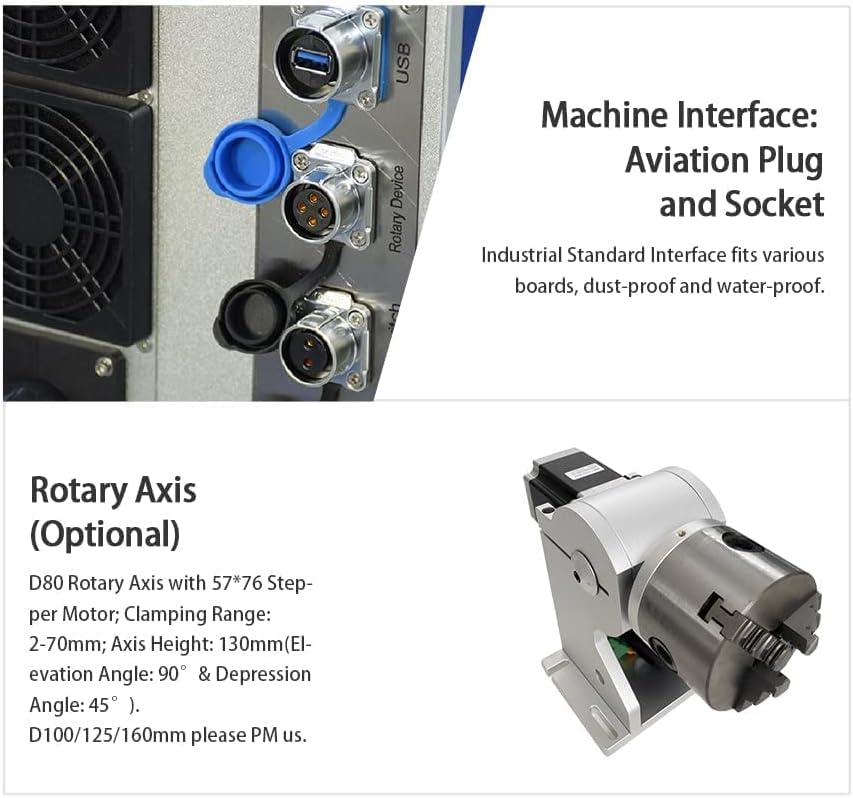

Rotary Axis

MAIN FEATURES

  • INTRODUCTION: ZAC fiber laser engraver machine, can be used in many precision marking fields. Laser Power: 20W/30W/60W/80W. Laser Type: YDFLP-E-M7-M-R JPT MOPA M7 Fiber Laser. Marking Area(Lens): 70*70mm/110*110mm/150*150mm/175*175mm/220*220mm/300*300mm Optional. Output Power Range: 10%-100%. Marking Speed: 7000mm/s. Engraving Depth:0.01-1mm. Input Voltage: 110V/220V, 50/60Hz. Cooling Method: Air cooling. Compatible with Lightburn and comes with EzCad2.
  • HIGH EFFICIENCY AND PERFORMANCE: This laser engraving machine can provide you fast speed marking with exceptional stability and superior optical performance. The wavelength is ONLY 1064nm, and the beam quality is good, which can realize precise ultra-fine processing. The laser marker has small focus spot, fast processing speed, and small heat-affected area of your material.
  • ENVIRONMENTAL PROCESS: It’s convenient to install this laser engraver and the size of this laser marking machine is small which has stable structure and low power consumption. Besides, non-contact marking brings no pollution, no noise which is very environmentally friendly.
  • WIDE APPLICATIONS: The life of fiber laser marking machine is about 100,000 hours which is suitable for many materials and industries, such as platinum, tungsten, titanium, carbide nickle, carbon steel,aluminum, stainless steel, Brass, Copper, Gold, Silver, metals, etc. Also some of non-mental such nylon, light button, ABS, PVC, PES, etc.

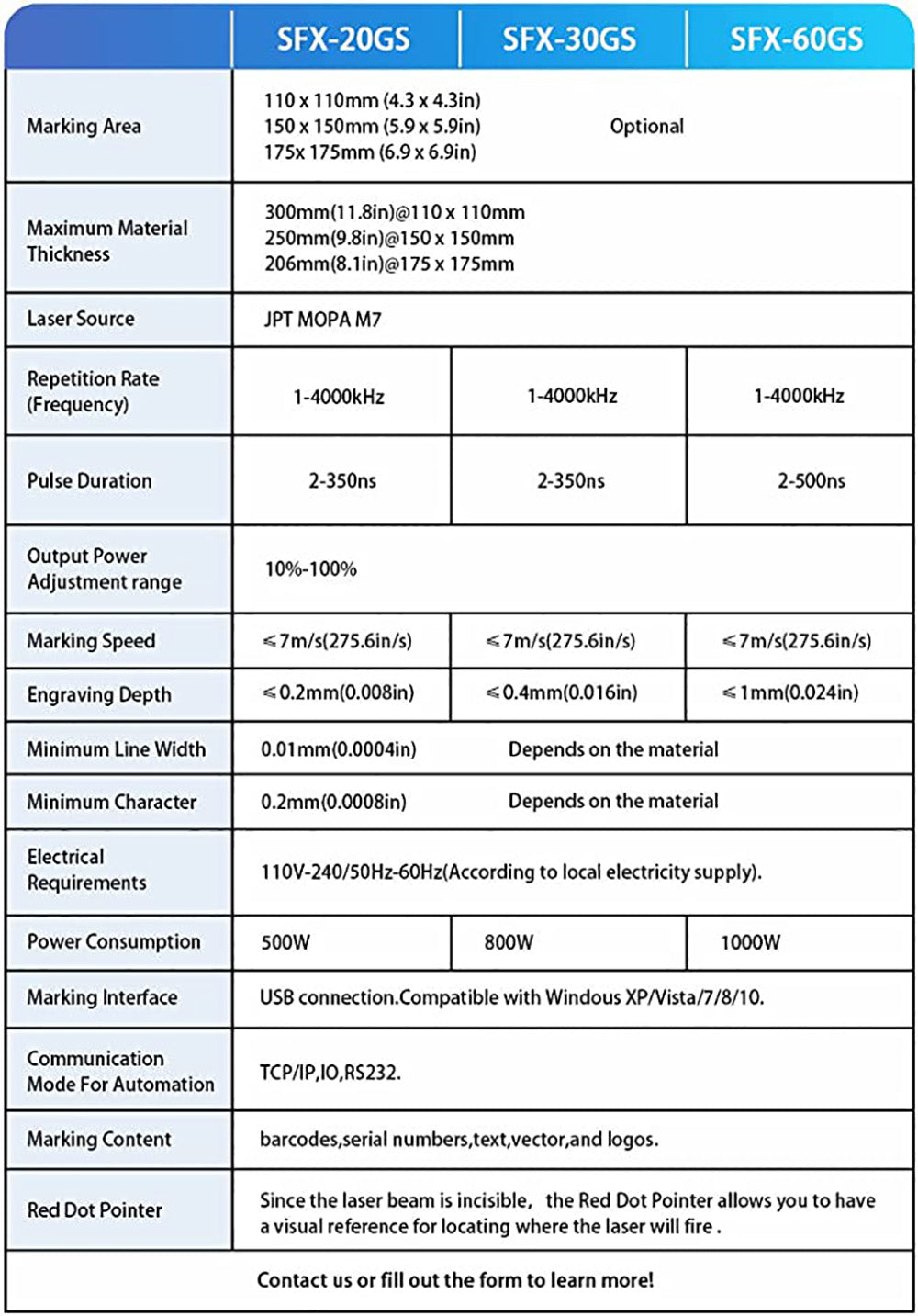

TECHNICAL PARAMETERS

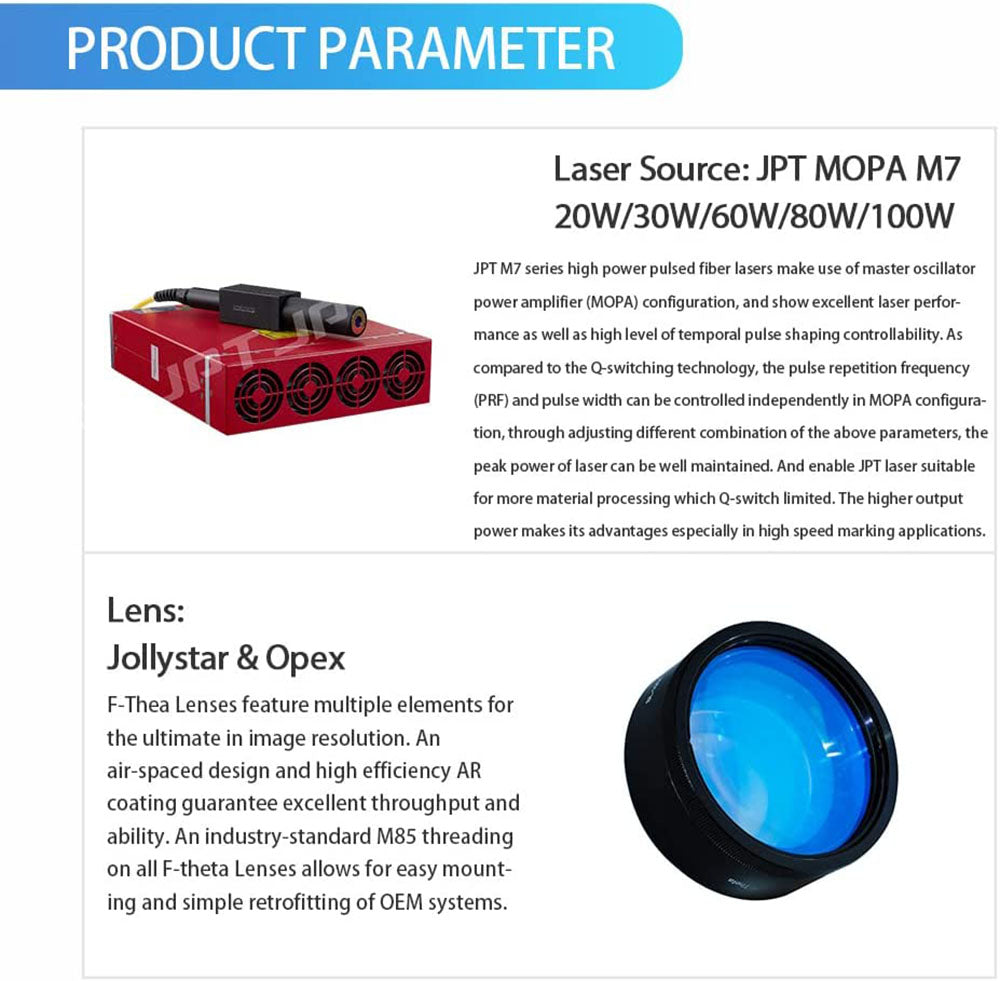

  • Laser Source: MOPA JPT M7
  • Input Voltage: 110V-240v 50-60Hz
  • Pulse width: 2-500ns
  • Maximum Pulse Energy: 1.5mJ
  • Frequency: 1-4000KHz
  • Lens(marking area): 70*70mm/110*110mm/150*150mm/175*175mm/220*220mm/300*300mm
  • Software: Original EZCAD2.0

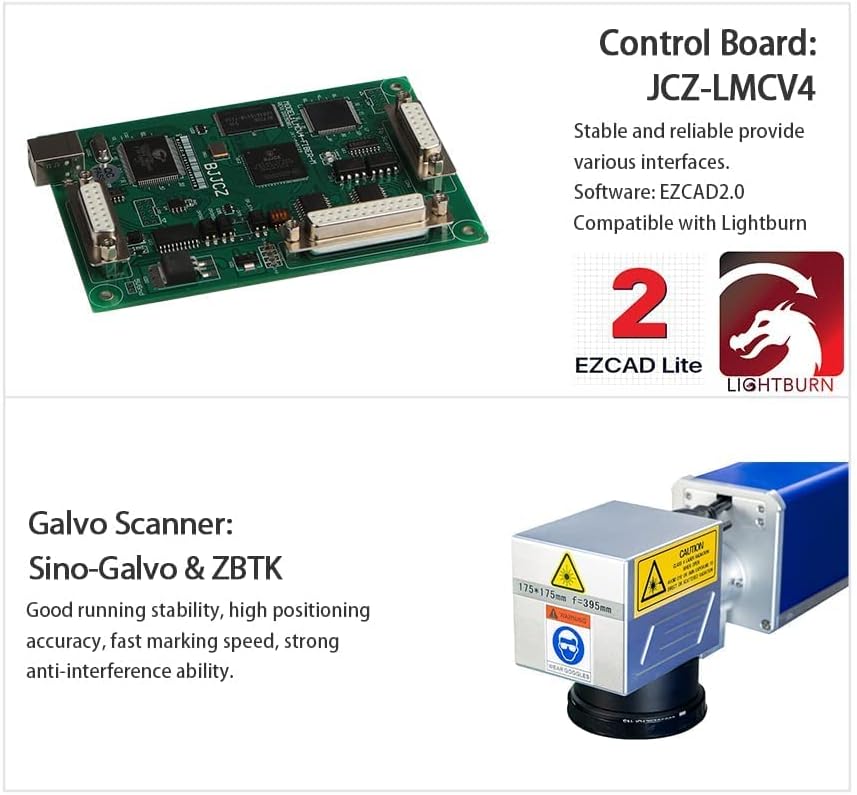

  • Control Card BJJCZ (Original)
  • Cooling Mode: Air cooling
  • Marking Speed: 275.6" /s(7000mm/s)
  • Engraving Depth: ≤1/1.2mm(Mopa 60w/80w)
  • Galvometer: Sinogalvo Scanlab
  • Min. Line Width: ≤0.0004" (0.01mm) Depends on the material
  • Min. Characte:r ≤0.008" (0.2mm) Depends on the material
  • Applicable: Windows XP/Vista/Win7/Win8/Win10/Win11
  • Automation Communication: Mode TCP/IP, IO, RS232
  • Marking Content: Barcodes, Serial numbers, Text, Vector, Logos etc.

    CARING WARRANTY

    1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.

    DELIVERY

    • Remote Assistance for operation issues
    • Lifetime Online Technical Support
    • Free Shipping to Your Door by Air (DHL/UPS) about 7-15 Days
    • No Import Duty for American Customers.
