MAIN FEATURES

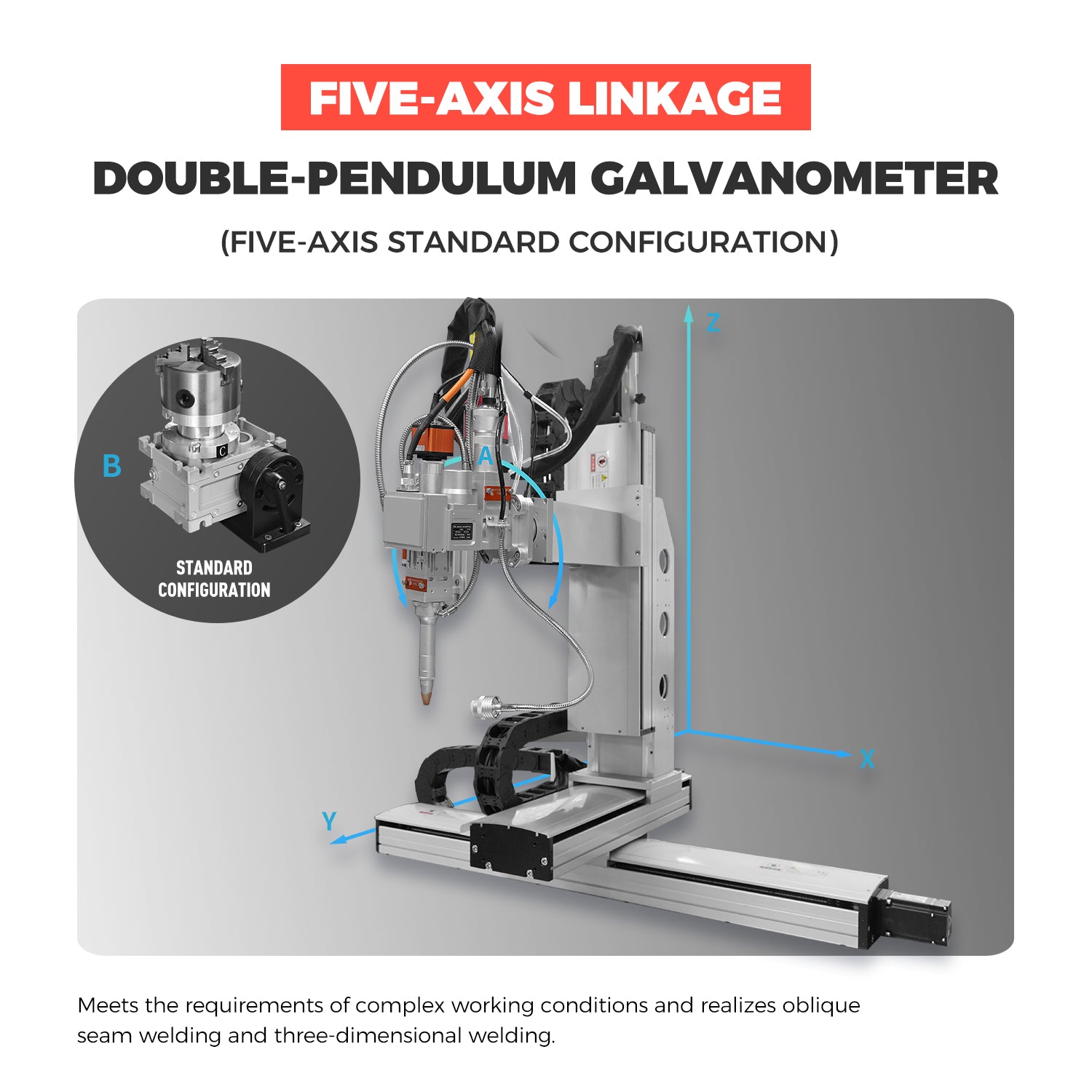

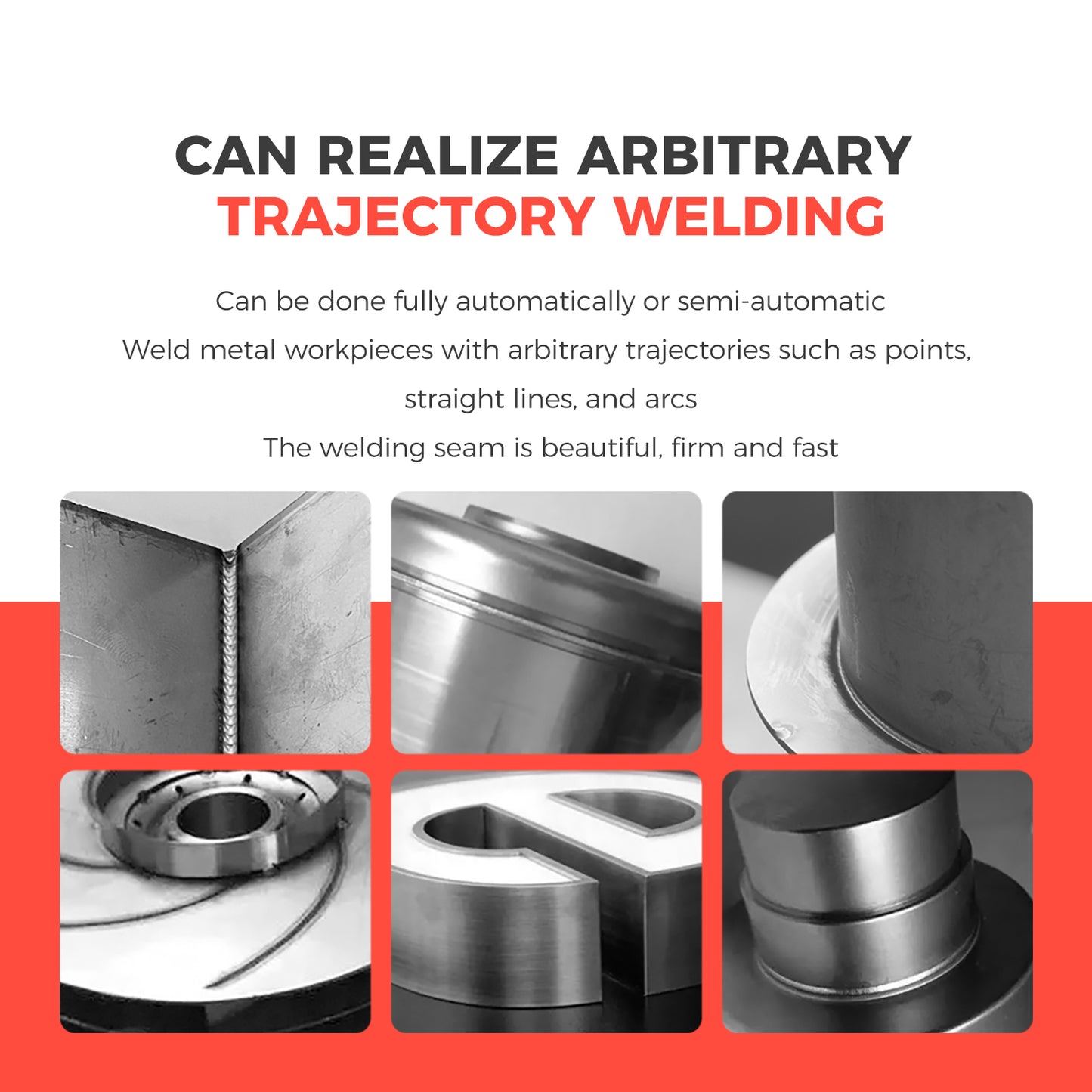

• FIVE-AXIS LINKAGE & INTELLIGENT CONTROL: Features a five-axis coordinated motion system with dual-pendulum galvanometer heads, supporting multi-angle and three-dimensional welding. Capable of following arbitrary trajectories like points, lines, arcs, and circles to meet complex production requirements.
• HIGH-SPEED, HIGH-QUALITY WELDING: Delivers fast welding speeds with strong, aesthetically clean seams. Minimal spatter and post-processing reduce grinding or polishing needs, greatly improving overall productivity.
• MODULAR & INDUSTRIAL-GRADE DESIGN: The machine adopts a modular architecture with vibration-resistant construction, allowing stable long-term operation. Maintenance-free design enhances reliability and reduces downtime in demanding industrial environments.
• EASY PROGRAMMING & OPERATION: Supports drag-to-teach programming and intuitive touchscreen control. Simplifies setup and operation for users of all skill levels, lowering training and labor costs.

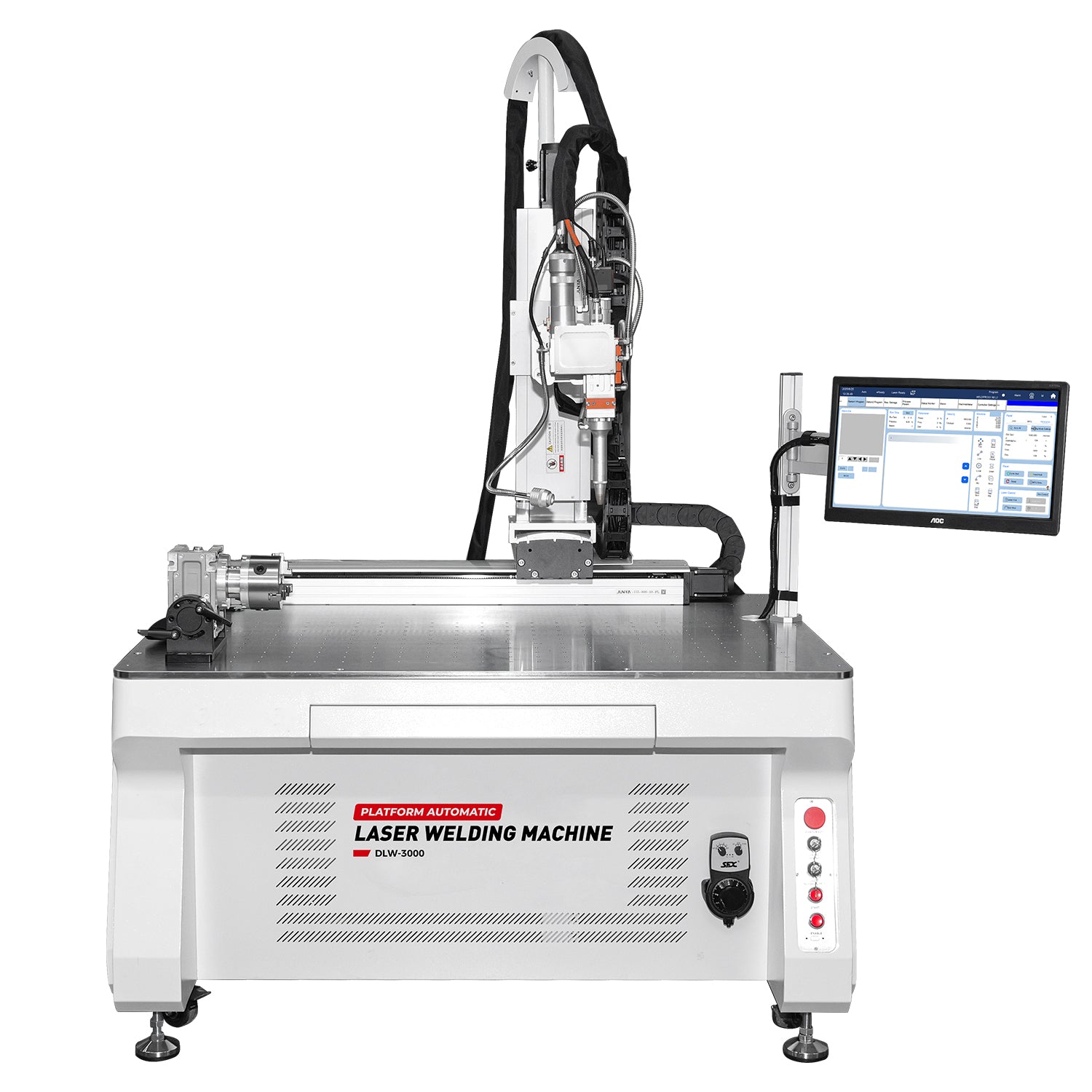

• INTEGRATED MOTION PLATFORM: Equipped with a precision sliding table and high-strength steel workbench, offering excellent stability and accuracy during welding. The table structure is compact, adjustable, and suitable for a wide range of part sizes.

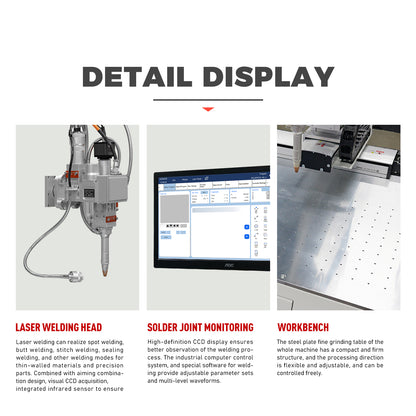

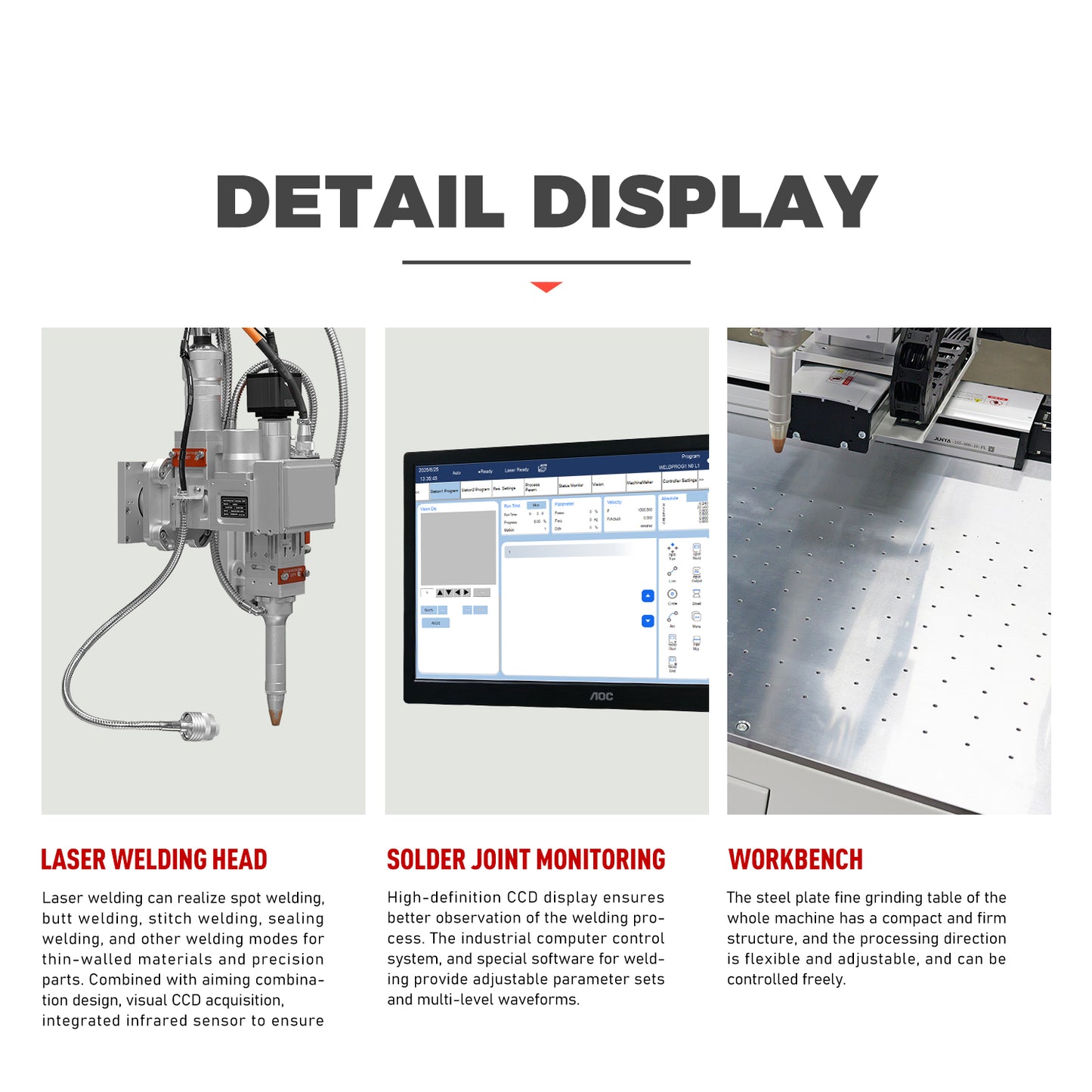

• ADVANCED VISION & POSITIONING SYSTEM: Combines CCD visual alignment with infrared aiming to ensure precise positioning. Real-time camera monitoring and waveform adjustment via industrial software enable consistent, high-quality welds.
• MULTIPLE WELDING MODES SUPPORTED: Supports spot welding, butt welding, stitch welding, sealing welding, and more. Ideal for thin-walled materials and high-precision parts like battery shells, metal cabinets, and sheet components.
• HIGH POWER, LOW HEAT DEFORMATION: Utilizes 1500W–3000W continuous fiber laser with high energy density. Produces deep welds with small heat-affected zones and minimal thermal distortion—ideal for fine metal processing.
• LONG SERVICE LIFE: Equipped with next-generation fiber laser technology, the system delivers tens of thousands of hours of stable performance with low operating costs.
• WIDE INDUSTRIAL APPLICATION: Perfect for sheet metal, kitchenware, battery boxes, hardware components, electrical enclosures, and other industries requiring high-efficiency automated welding.

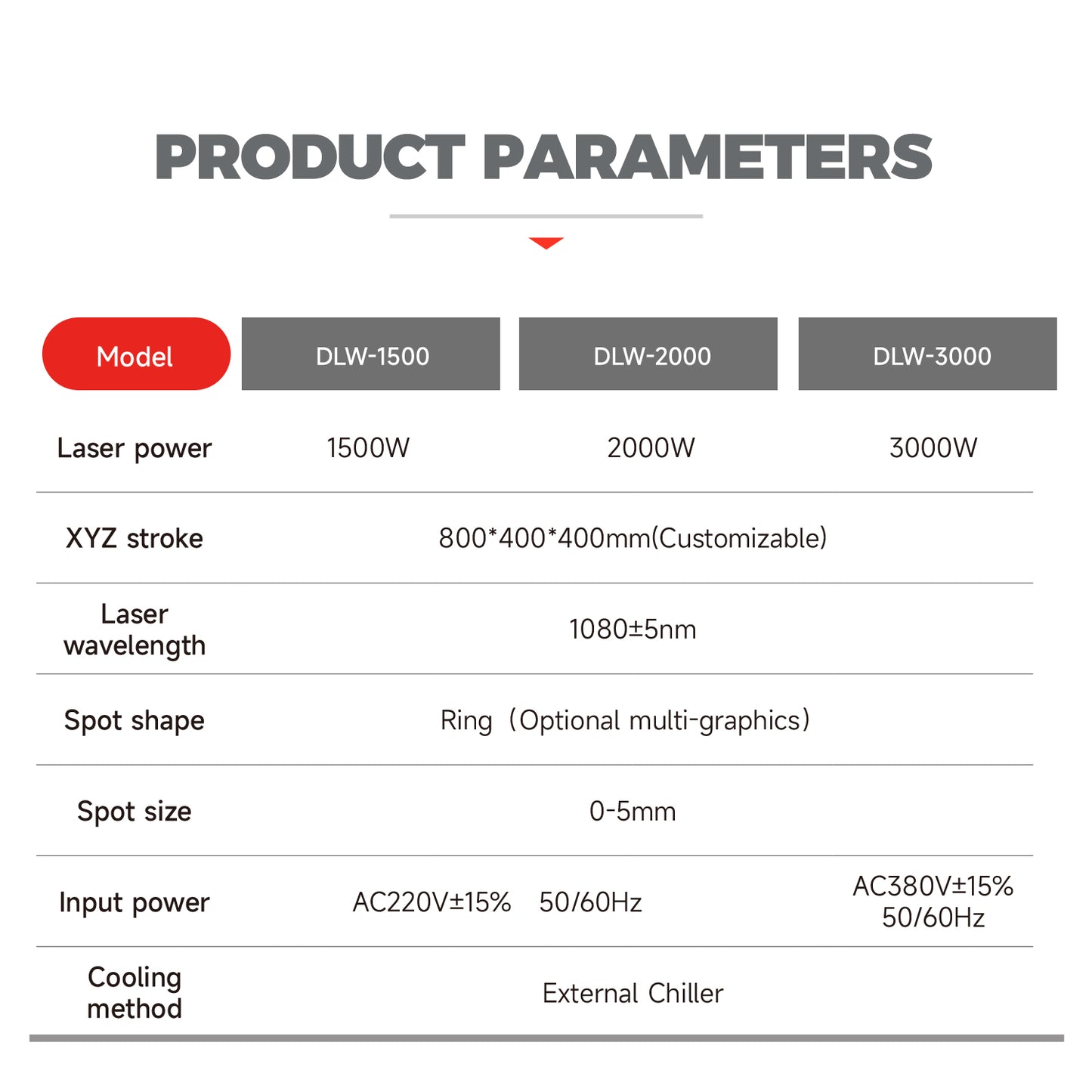

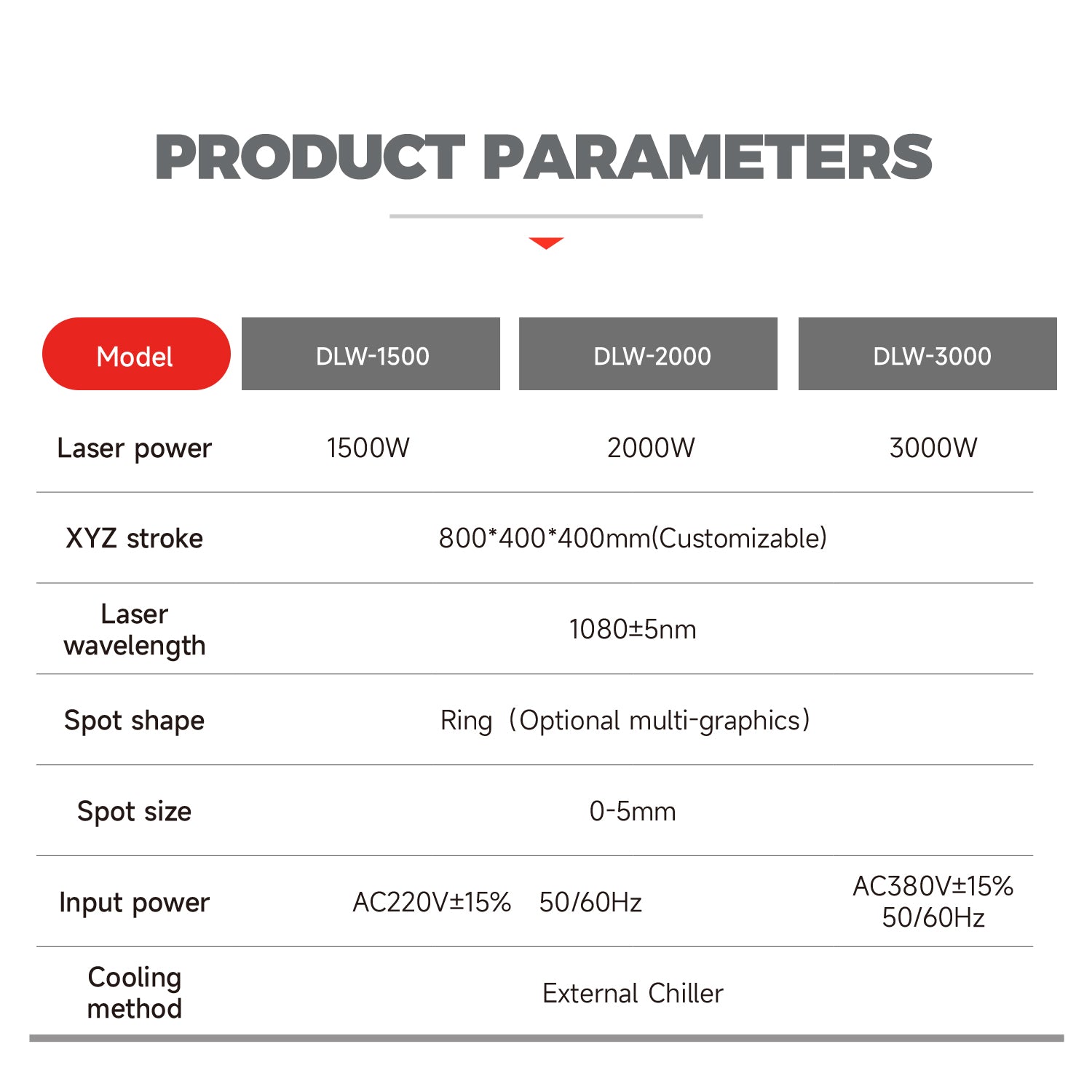

TECHNICAL PARAMETERS

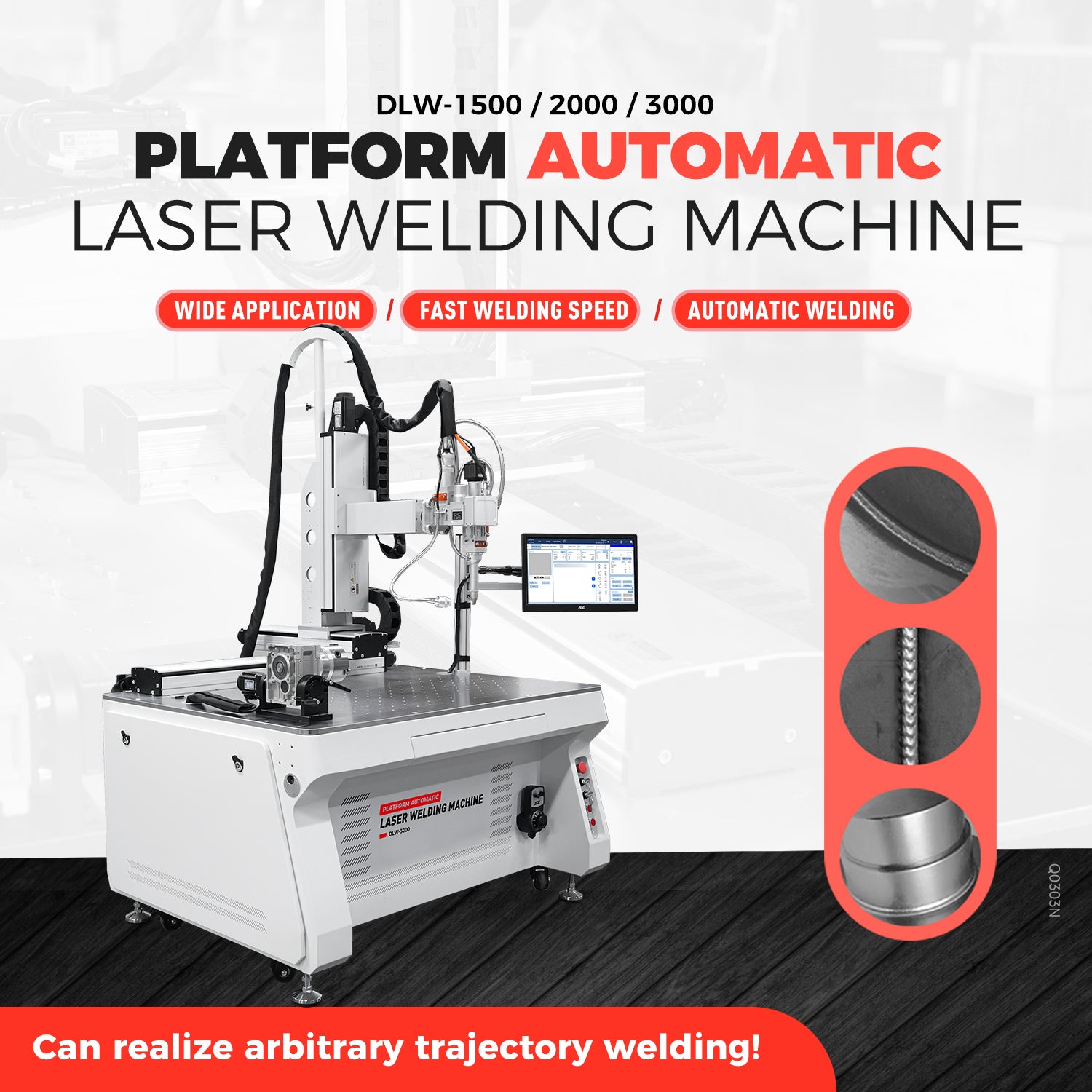

• Model: DLW-1500 / DLW-2000 / DLW-3000

• Laser Power: 1500W / 2000W / 3000W

• Laser Type: Continuous Fiber Laser

• Laser Wavelength: 1080 ± 5nm

• Control Axis: 5-Axis Linkage with Galvanometer

• Motion Platform: Precision Sliding Table

• Galvanometer Type: Double Pendulum (L/R)

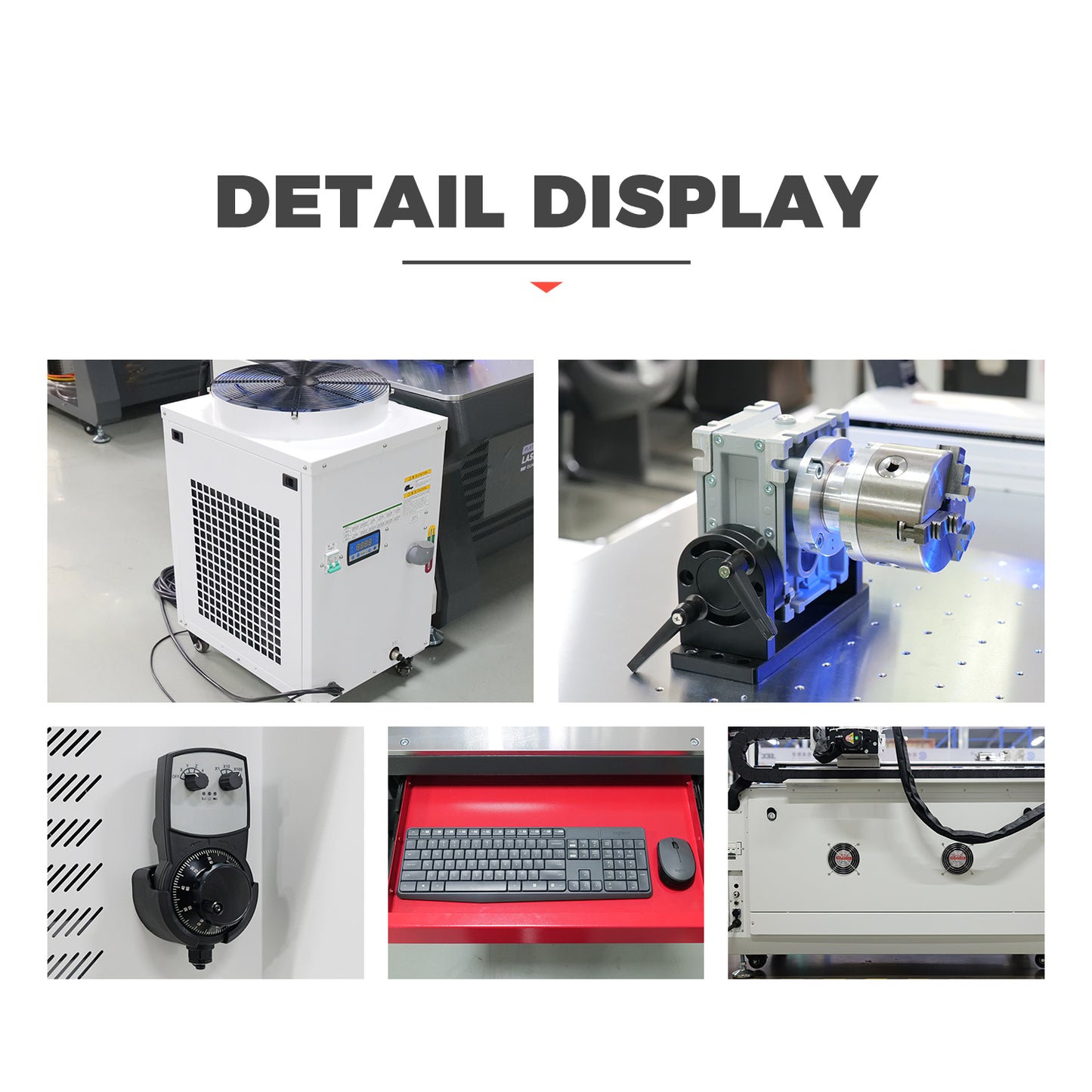

• Cooling Method: Water Cooling

• Positioning Accuracy: ±0.02mm

• Max Welding Speed: Up to 8000mm/min

• Input Voltage: AC220V / 50Hz

• Operating Temperature: 0°C–40°C

• Humidity: 10%–80%

• Applicable Materials: Stainless Steel, Carbon Steel, Galvanized Sheet, Aluminum, Copper.

• Optional Accessories: Vision System, Smoke Purifier, Safety Shield, Rotary Jig.

CARING WARRANTY

• Comprehensive Warranty: 1-year full machine coverage, 2-year laser source protection.
• Expert Assistance: Remote support available for troubleshooting and operation guidance.
• Hassle-Free Shipping: Free sea freight and truck delivery, with no import duty for U.S. customers.
• Flexible Payment Terms: 30% deposit, 70% balance before shipment.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Sea Freight
• No Import Duty for Worldwide Customers.
