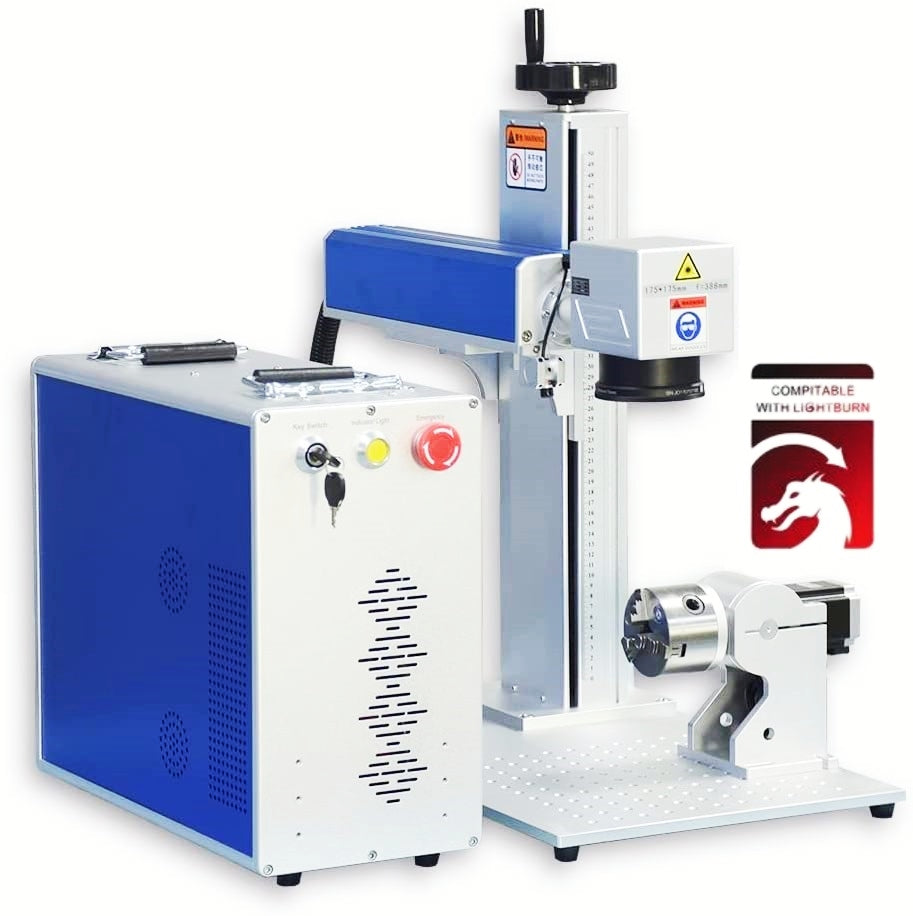

ZAC Fiber Laser Engraver Machine 30W Raycus Split Laser Marking Machine EZCAD2.0

ZAC Fiber Laser Engraver Machine 30W Raycus Split Laser Marking Machine EZCAD2.0

  • US Local Offices
  • Free Shipping
  • Premium Support
Regular price $4,399.00 USD
Regular price Sale price $4,399.00 USD
Sale Sold out
Tax included. Free Shipping to Your Door Around 7-9 Days.
Laser Power
Lens

MAIN FEATURES

  • INTRODUCTION: ZAC fiber laser engraver machine, can be used in many precision marking fields. Laser Power: 30W. Laser Type: Raycus. Marking Area(Lens): 175*175mm(6.9*6.9in) . Output Power Range: 10%-100%. Marking Speed: 7000mm/s. Engraving Depth:0.01-1mm. Input Voltage: 110V/220V, 50/60Hz. Cooling Method: Air cooling. Compatible with Lightburn and comes with EzCad2.
  • HIGH EFFICIENCY AND PERFORMANCE: This laser engraving machine can provide you fast speed marking with exceptional stability and superior optical performance. The wavelength is ONLY 1064nm, and the beam quality is good, which can realize precise ultra-fine processing. The laser marker has small focus spot, fast processing speed, and small heat-affected area of your material.
  • ENVIRONMENTAL PROCESS: It’s convenient to install this laser engraver and the size of this laser marking machine is small which has stable structure and low power consumption. Besides, non-contact marking brings no pollution, no noise which is very environmentally friendly.

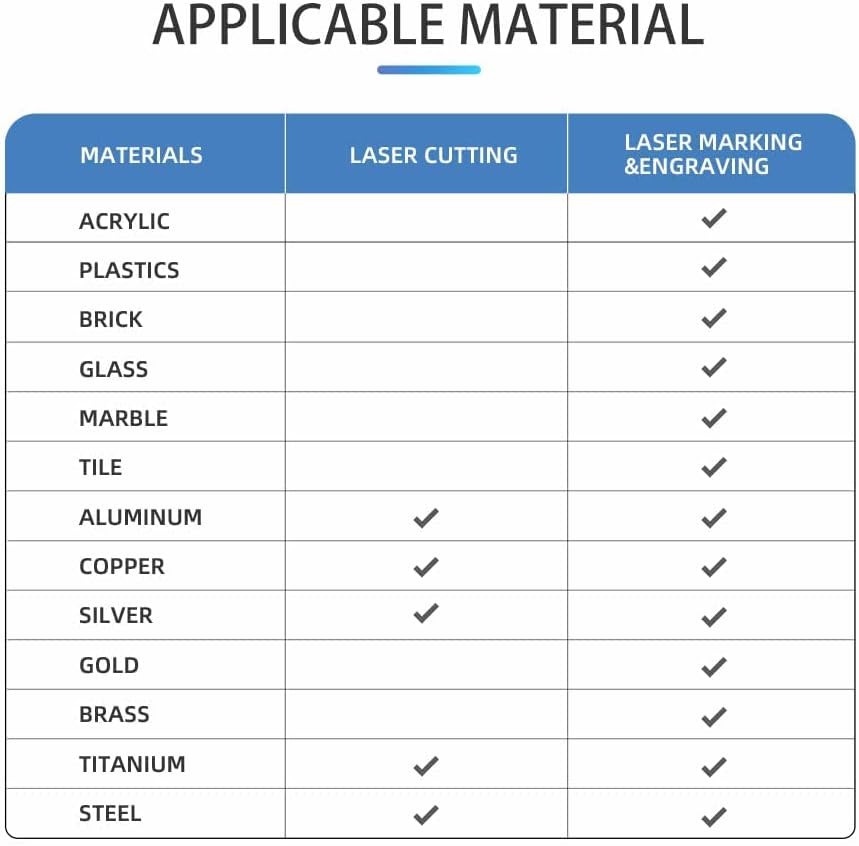

  • WIDE APPLICATIONS: The life of fiber laser marking machine is about 100,000 hours which is suitable for many materials and industries, such as platinum, tungsten, titanium, carbide nickle, carbon steel,aluminum, stainless steel, Brass, Copper, Gold, Silver, metals, etc. Also some of non-mental such nylon, light button, ABS, PVC, PES, etc.

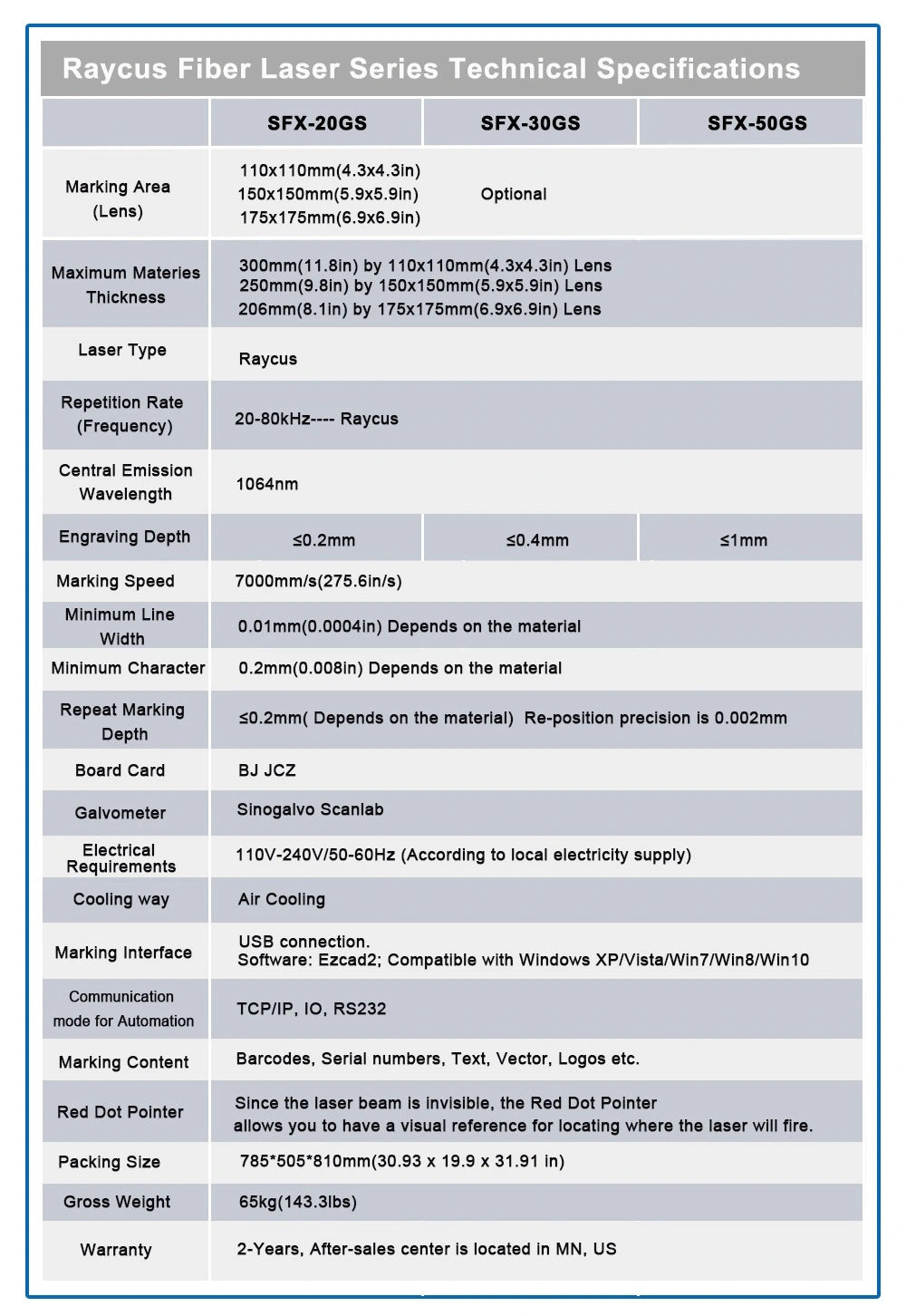

TECHNICAL PARAMETERS

  • Laser Power: 30W.
  • Laser Type: Raycus
  • Marking Area:175*175mm.
  • Output Power Range: 10%-100%.
  • Marking Speed: 7000mm/s.
  • Input Voltage: 110V/220V, 50/60Hz.
  • Cooling Method: Air cooling.
  • Electrical Requirements:110V-240V/50Hz-60HZ
  • Engraving Depth: ≤0.4mm(0.016in)
  • Maximum Material Thickness: 206mm(8.1in) by 175x175mm lens
  • Laser Wavelength: 1064nm
  • Connection:USB connection
  • Repetition Rate (Frequency):30-60kHZ - Raycus
  • Galvometer: Sinogalvo Scanlab
  • Board: BJJCZ
  • Graphic Format Supported: PLT/PCX/DXF/BMP/JPEG/DST/DWG/AI/LAS, etc.
  • Packing Size:785*505*810mm(30.93 x19.9 x 31.91 in)
  • Gross Weight: 65kg(143.3lbs)

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by FedEx/DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.

DELIVERY

  • Remote Assistance for operation issues
  • Lifetime Online Technical Support
  • Free Shipping to Your Door by Air (DHL/UPS/Fedex) about 7-15 Days
  • No Import Duty for American Customers.

View full details
