MAIN PARAMETERS

ADVANTAGE: High quality beam, focusing spot is smaller, that can achieve hyper fine marking. Thermal impact area is very small, will not produce thermal effect, will not produce material burning problem. Fast marking speed and high efficiency. Stable performance, small size, low power consumption

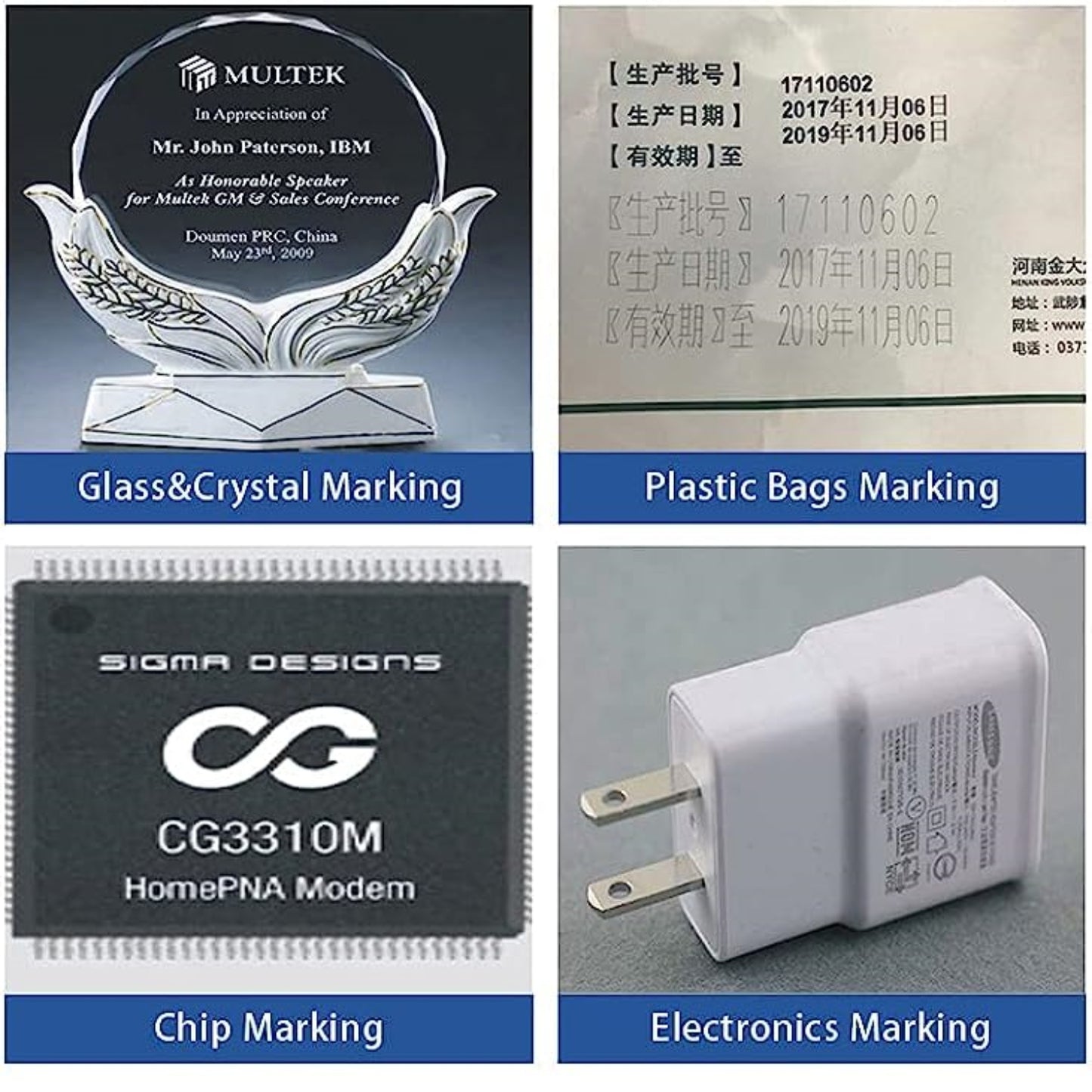

Application: UV laser marking machine is mainly based on its unique low-power laser beam, especially suitable for the high-end market of ultra-fine processing. Suitable for cosmetics, drugs, food and other macro-molecule material packaging surface marking. Widely used in Glass, Crystal, Plastic, Ceramic, Leather, Silicon wafer, Metal, Wood, Circuit Board etc.

TECHNICAL PARAMETERS

Laser Power: 10W/15W
Laser Wavelength: 355nm
Beam Quality: M2<1.2
Laser Repetition frequency: 20-200KHz
Marking Area: 175*175mm(standard fitting)
Maximum Optional Range: 220*220/300*300/400*400/500*500mm
Marking Speed: ≤8000mm/s
Engraving Depth: ≤0.01mm-0.5mm(It depends on the material)
Minimum Line Width: 0.01mm
Minimum Character: 0.15mm
Repeat Accuracy: ±0.001mm
Demand for Electricity: 110V/60HZ 220V/50HZ
Power Consumption: ≤1500W
Cooling Way: Water-cooling

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.
