ZAC M3-M16 Electric Tapping Machine 360 Degree Tapping Arm 9PCS ANSI Collets Included

ZAC M3-M16 Electric Tapping Machine 360 Degree Tapping Arm 9PCS ANSI Collets Included

  • Local Offices
  • Free Shipping
  • Lifetime Support
Precio habitual $1,169.00 USD
Precio habitual Precio de oferta $1,169.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Configuration

MAIN FEATURES

  • INTRODUCTION: ZAC electric tapping machine can highly improve the productivity of making parts with a lot tapped holes. For M3-M16 tapping. Supply Voltage: 110V. Rated Power: 600W. Rotated Speed: 0-375r/min. Working Radius: 1045mm. Working Area: horizontal 1045mm, vertical 400mm. Dimension: 27.6*26*8.7in. Weight: 70.55lbs. Standard equipped tap collet size: 9PCS GT12 ANSI Collets Tap Torque Collet -1/16"Thru 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", 3/8", 7/16", 1/2".
  • HIGH EFFICIENCY: All the speeds, depths, and torque are adjustable on the screen. There are three working modes: Manual Tapping, Automatic Tapping, Deep Hole Tapping. So that you can choose the suitable modes for your demands and save your time and energy. Besides, the universal feature can achieve horizontal tapping which can highly improve the productions.
  • STRONG OUTPUT: The electric tapping machine has an advanced flexible tapping system and imported servo motor which help the taps are not easily damaged when blind and deep hole tapping, and ensure the processing of high quality threaded holes and suit for various operations. Besides, the forward and backward speed can be adjusted to meed your working demands.
  • AUTO-OILING FUNCTION (OPTIONAL): The auto-oiling feature ensures consistent and efficient lubrication during the tapping process, reducing friction and wear on the tool. This function enhances the longevity of the machine and improves the quality of the threaded holes by providing optimal lubrication automatically, allowing for smoother operation and less manual intervention.
  • APPLICABLE MATERIALS: Aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials, plastic and wood and other materials.

TECHNICAL PARAMETERS

  • Tapping Angle: Universal
  • Rotation Speed: 0-375r/min(Stepless Speed Regulation)
  • Tapping Capacity: Steel: M3-M16 Aluminum: M3-M16 Stainless steel: M3-M16
  • Working Area Horizontal: 1100mm(43.3inch)
  • Weight: 32kg/108lbs
  • Vertical: 400mm adjustable
  • Power/Voltage: 600W/110V

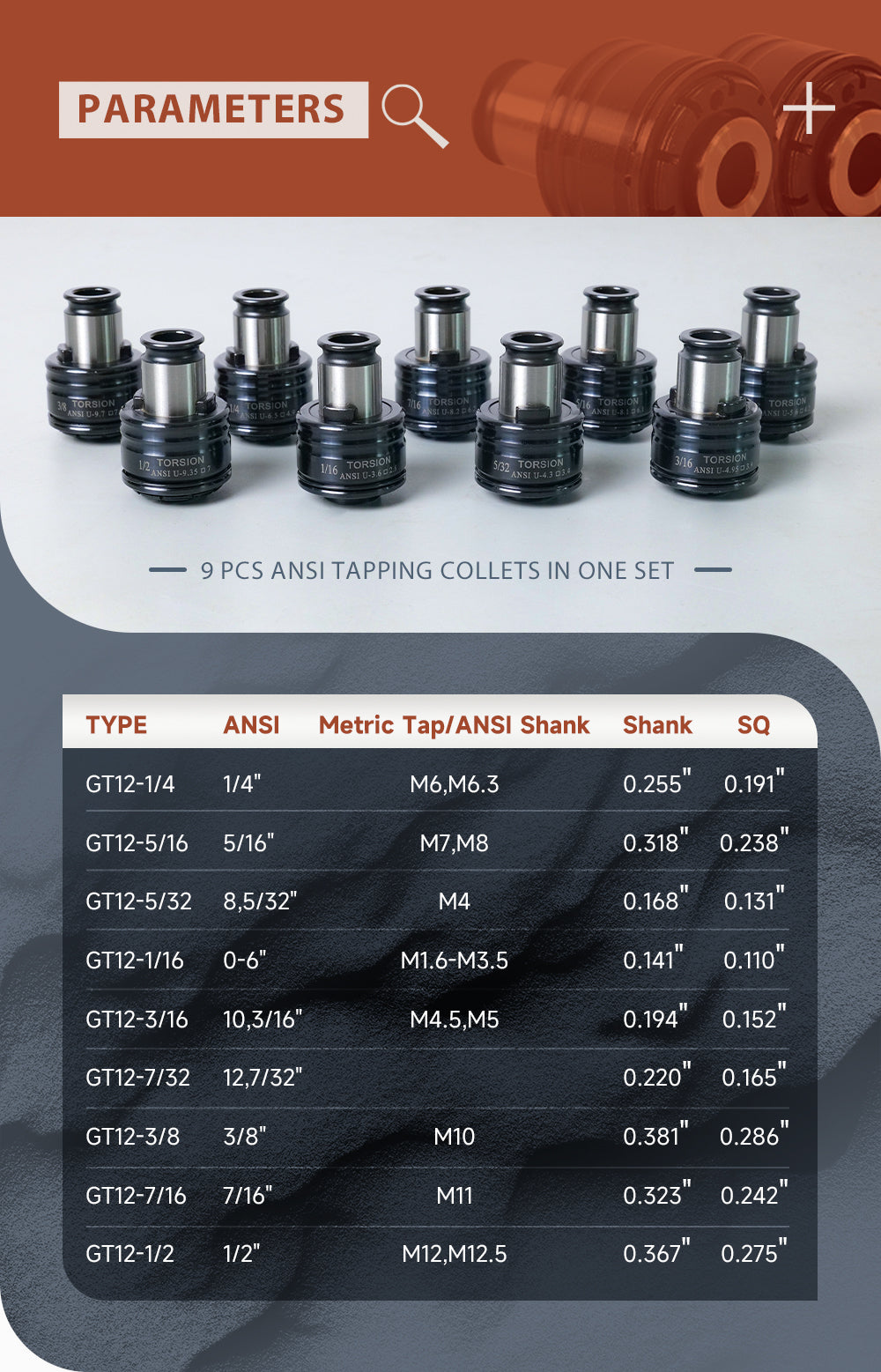

  • Tap Collets: M3-M16 (9pcs One Set) ANSI Standard Collets:GT12-1/4 5/16 5/32 1/16 3/16 7/32 3/8 7/16 1/2

CARING WARRANTY

We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email via email, and our 24 hours customer service will support you.

DELIVERY

  • Remote Assistance for operation issues
  • Lifetime Online Technical Support
  • Free Shipping to Your Door by Air (DHL/UPS) about 7-10 Days
  • No Import Duty for American Customers.
