MAIN FEATURES

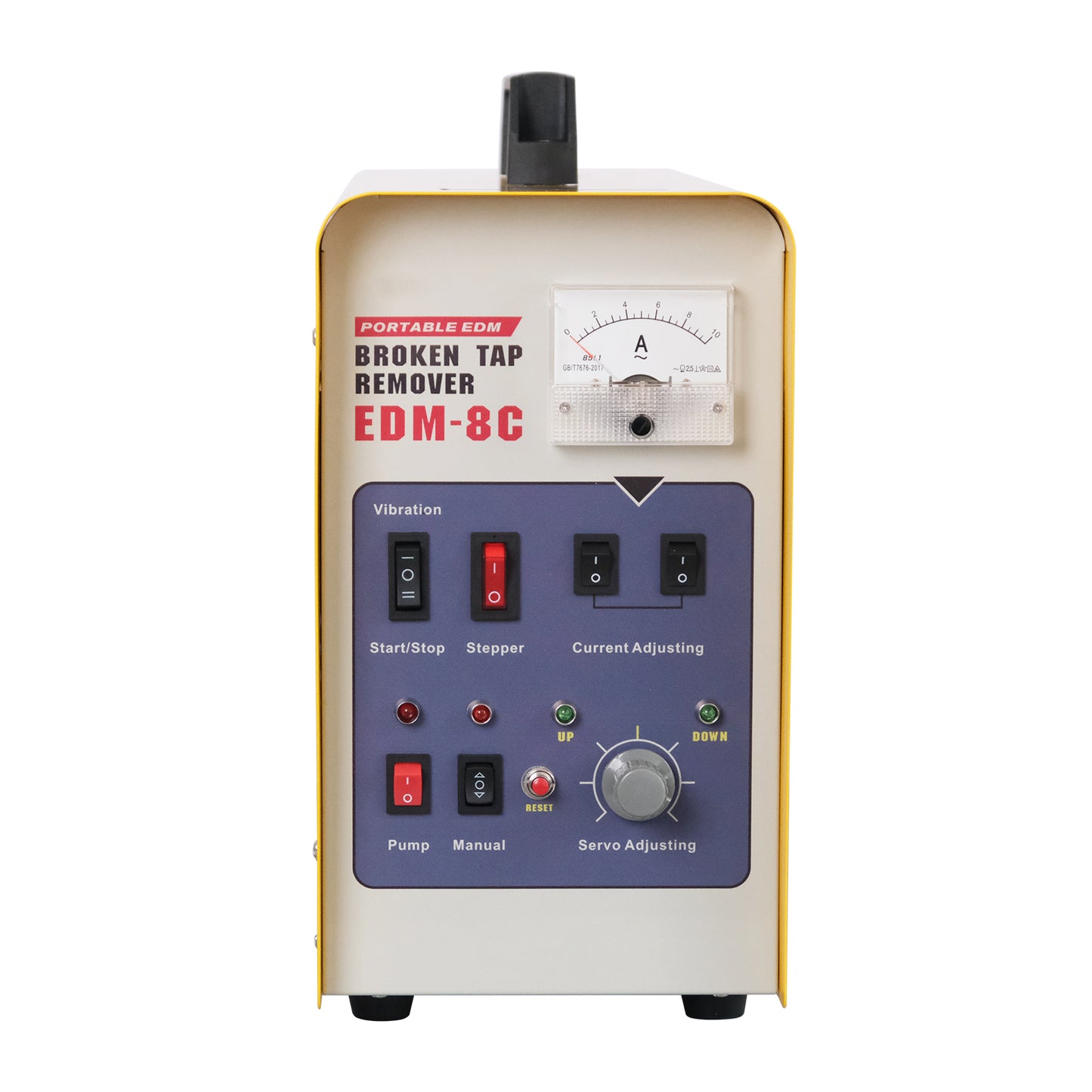

•  INTRODUCTION: WTTTOOLS broken tap remover, can fast remove M2 to M20 (5/64'' to 25/32'') broken taps, broken bolts, drill bits, screws without damaging threads and workpiece. Input Voltage: 110V. Output Power: 800W. Electrode Chuck Diameter: 0.8-10mm; Max Process Depth of Spindle Servo: 70mm; Work Liquid: Tap Water; Short Hole Processing Speed: ≈1mm/min Electrode Φ4(Processing Material: Hardened Steel). Max Process Depth 70mm/2.78in.Machine Dimension:15*6.3*11.8in. Net Weight: 35.3lbs
• HIGH EFFICIENCY: Different from traditional broken tap extractor tools and kits, this kind of tap disintegrator edm machine can save much time and and labor energy because the depth can be set and it can achieve auto retract and alarm Depth setting. And the reset button can be used for stuck spindle which can highly improving your working efficiency.

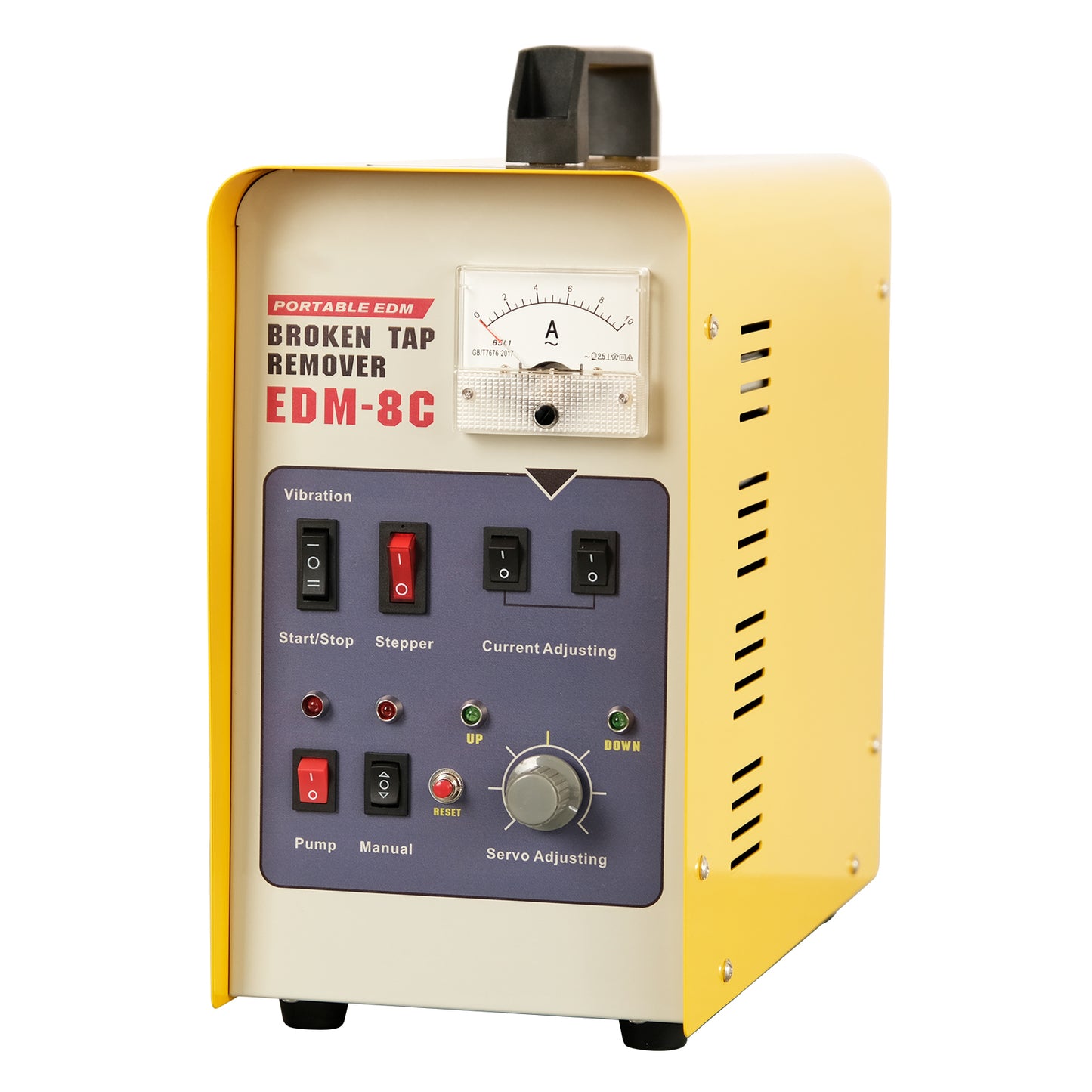

• EASY TO OPERATE: This EDM machine can be operated easily that you only need to turn on switches and adjust current and then the broken taps can be easily removed from the workpiece. Besides, the small volume and lightweight design make it easily process on large or heavy workpieces and help improve removing efficiency without space limitations.

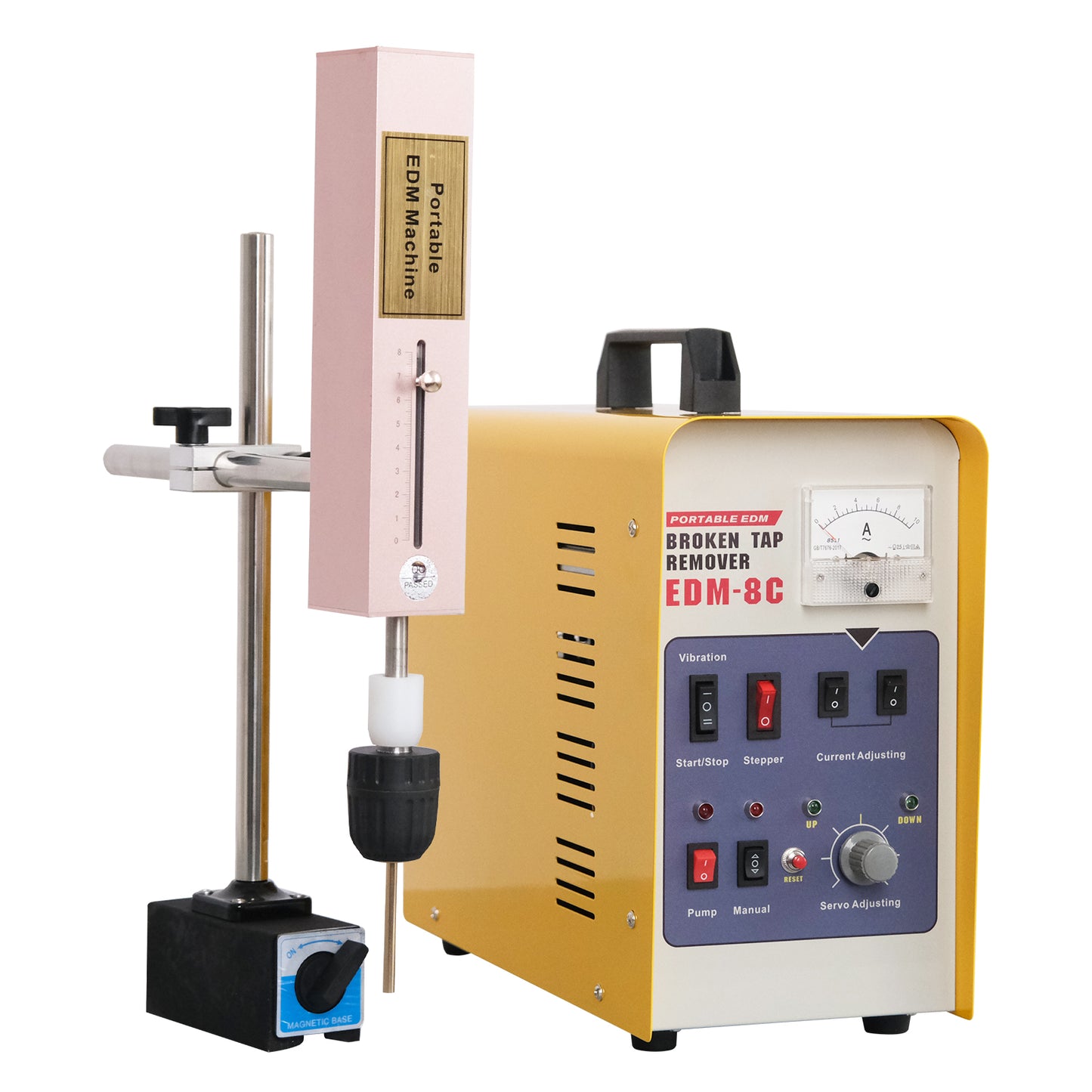

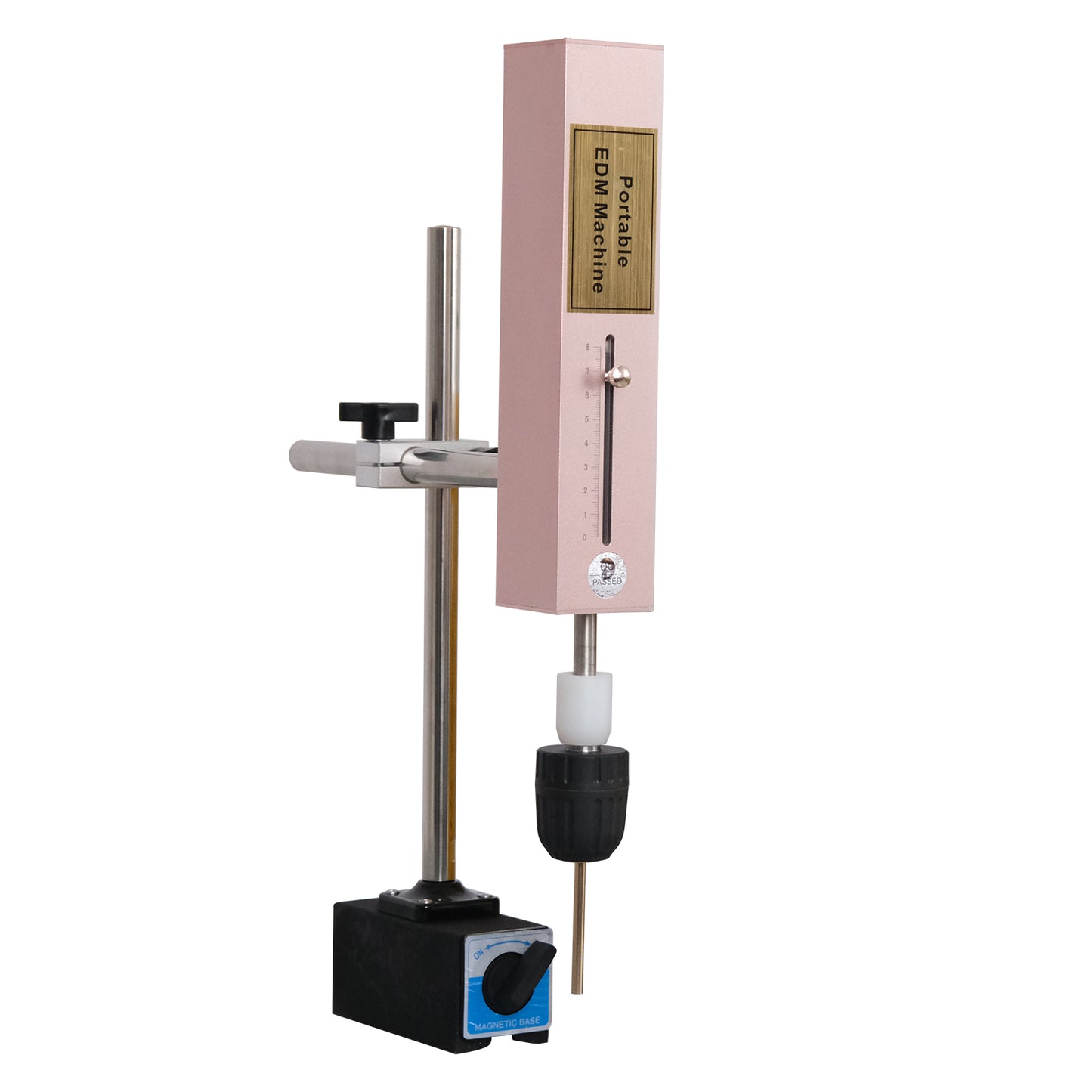

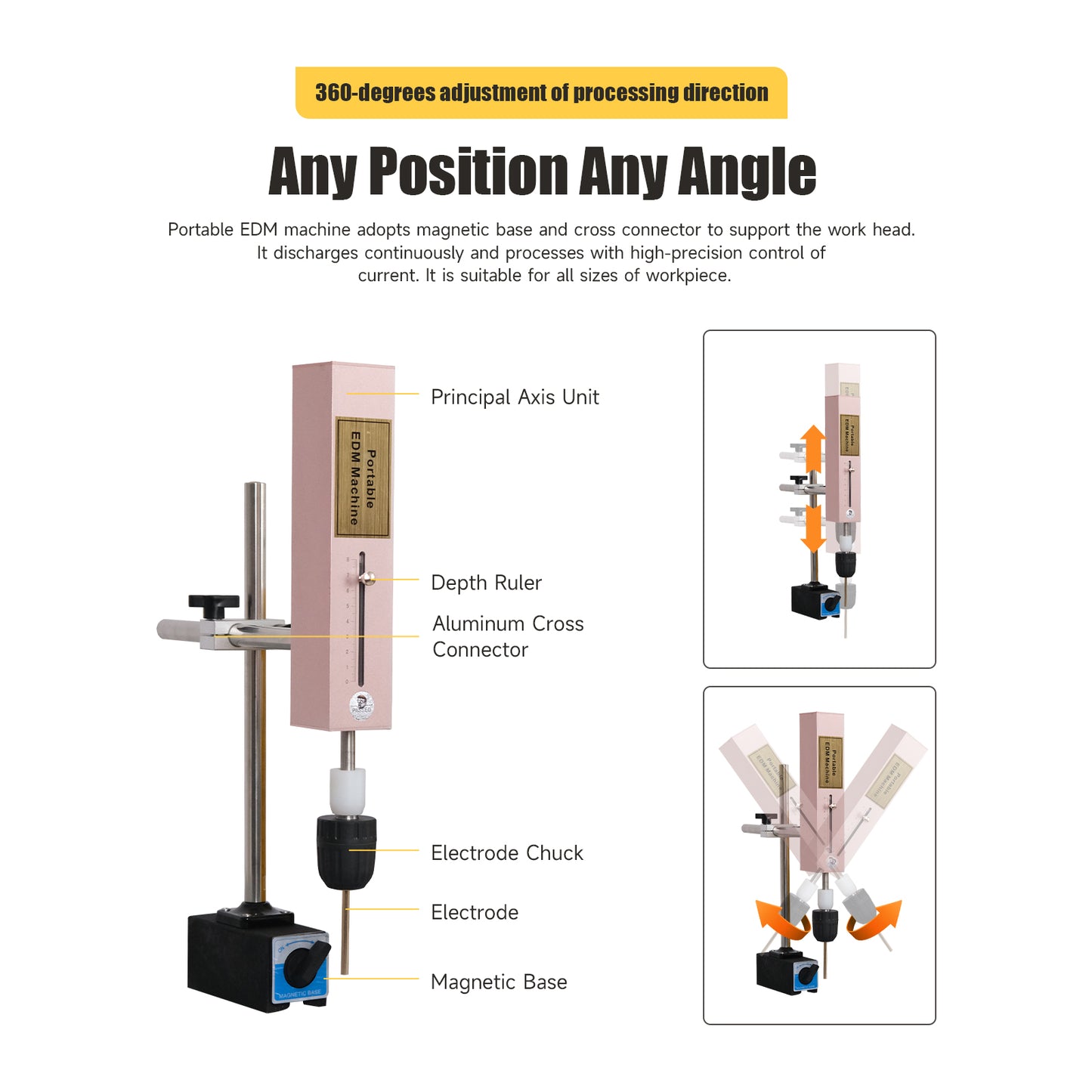

• PREMIUM QUALITY: With seperated workhead, the processing direction can be 360°adjusted to fit the workpiece. Adopts magnetic base and cross connector to support the workhead which provides you more stable working process. Suitable for various workpieces and machine shop, heavy equipment repair, aircraft, auto/truck repair, etc.

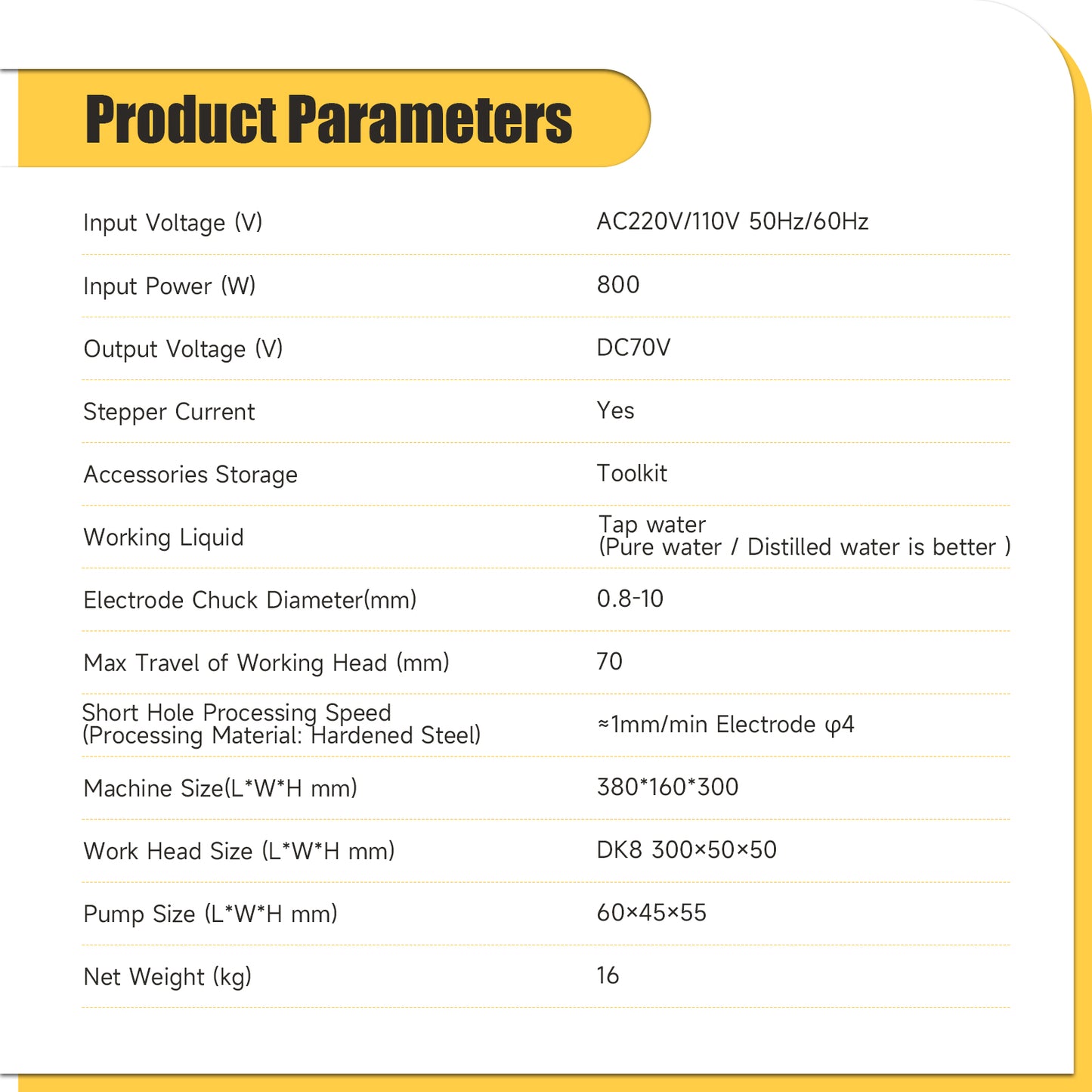

TECHNICAL PARAMETERS

• Input Voltage (V): AC220V/110V 50Hz/60Hz
• Input Power (W): 800
• Output Voltage (V): DC70V
• Stepper Current: Yes
• Accessories Storage: Toolkit
• Working Liquid: Tap water (Pure water/Distilled water is better)
• Electrode Chuck Diameter (mm): 0.8-10
• Max Travel of Working Head (mm): 70
• Short Hole Processing Speed: ≈1mm/min Electrode φ4
• Machine Size (LWH in): 15 x 6.3 x 11.8 in
• Work Head Size (LWH in): DK8 11.8 x 2 x 2 in
• Pump Size (LWH in): 2.4 x 1.8 x 1.8 in
• Net Weight (lbs): 35.28 lbs

CARING WARRANTY

We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email via email, and our 24 hours customer service will support you.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS) about 7-10 Days
• No Import Duty for American Customers.
