MAIN FEATURES

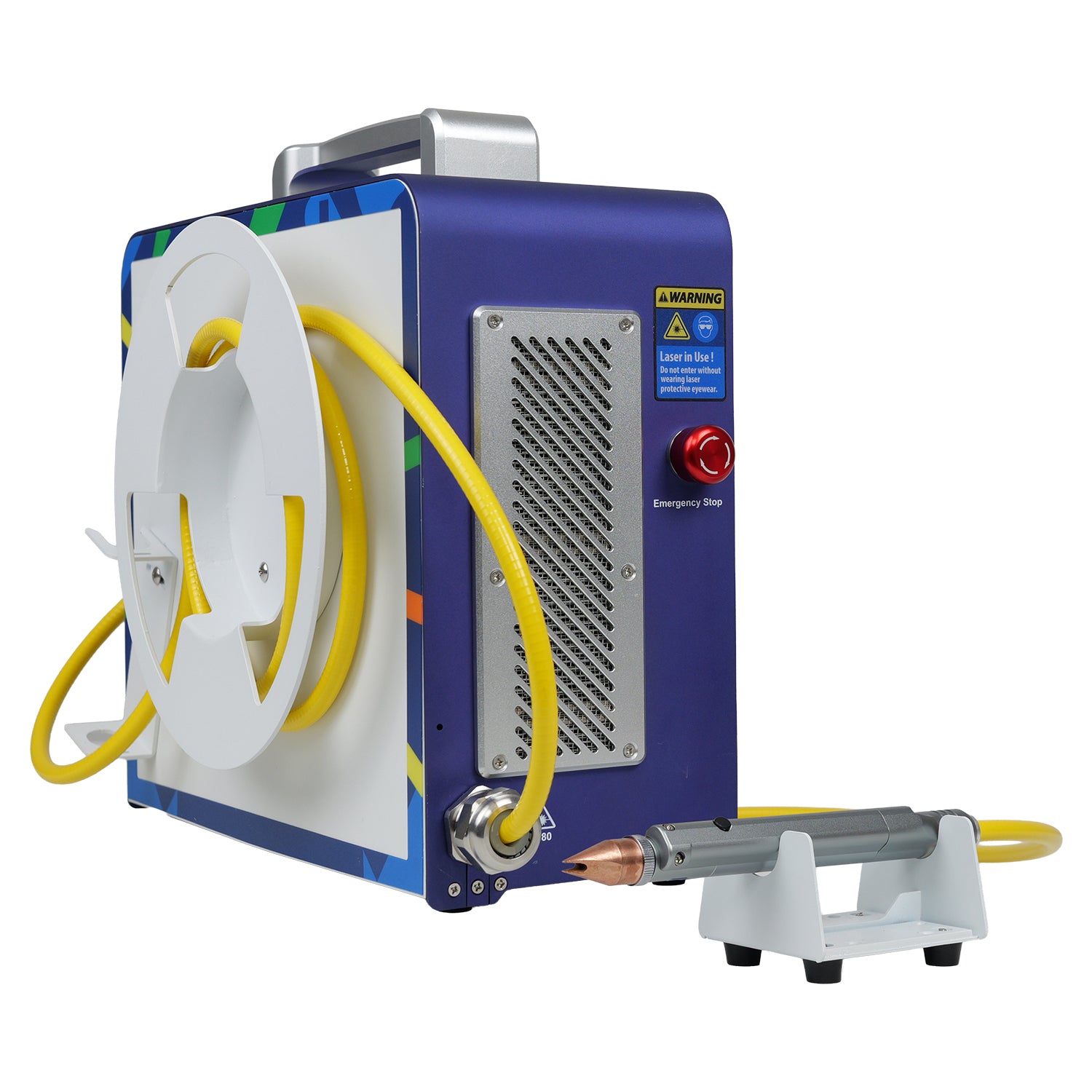

• INTRODUCTION - ZAC 300W Portable Laser Welder is a professional-grade solution designed for ultra-thin sheet welding, precision metal fabrication, and DIY craft production. Model: DGW-300, Peak Power: 600W, Laser Wavelength: 1080 ±5nm, Pulse Frequency: 1 - 300Hz, Modulation Frequency: 1 - 5000Hz, Max Single Pulse Energy: 6J/10ms, Output Fiber Length: 2~3m, Core diameter: 100μm, Input power: ≤2000W

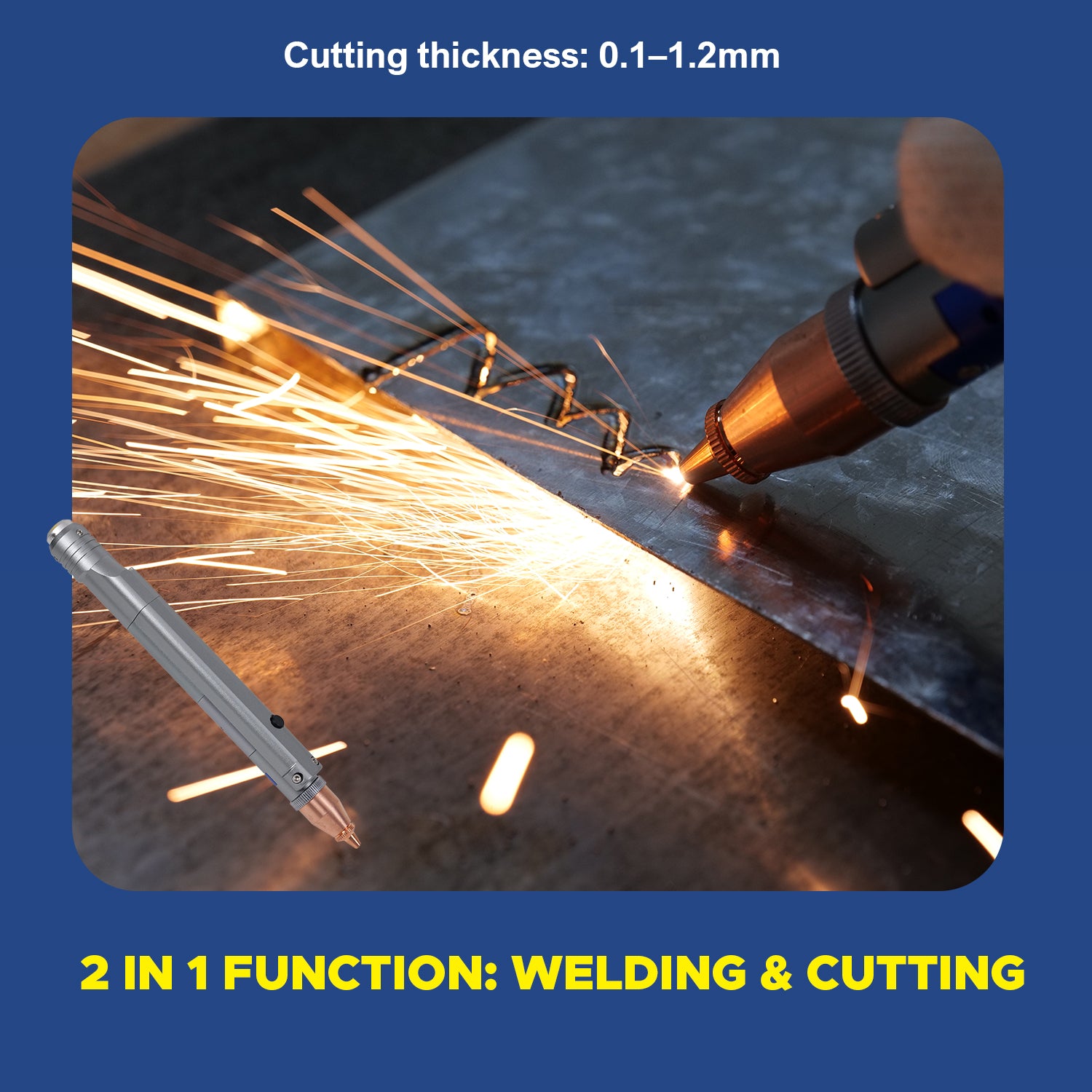

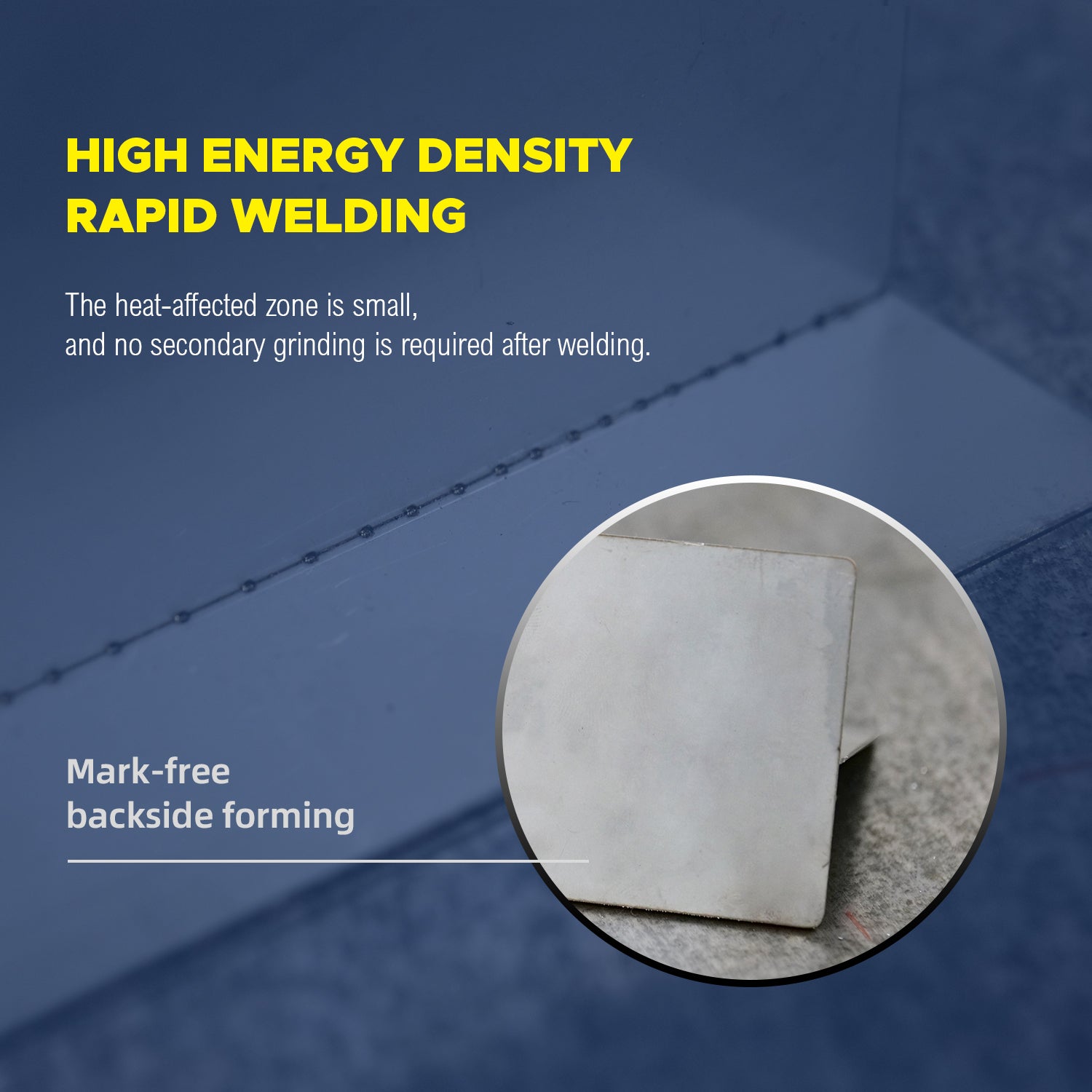

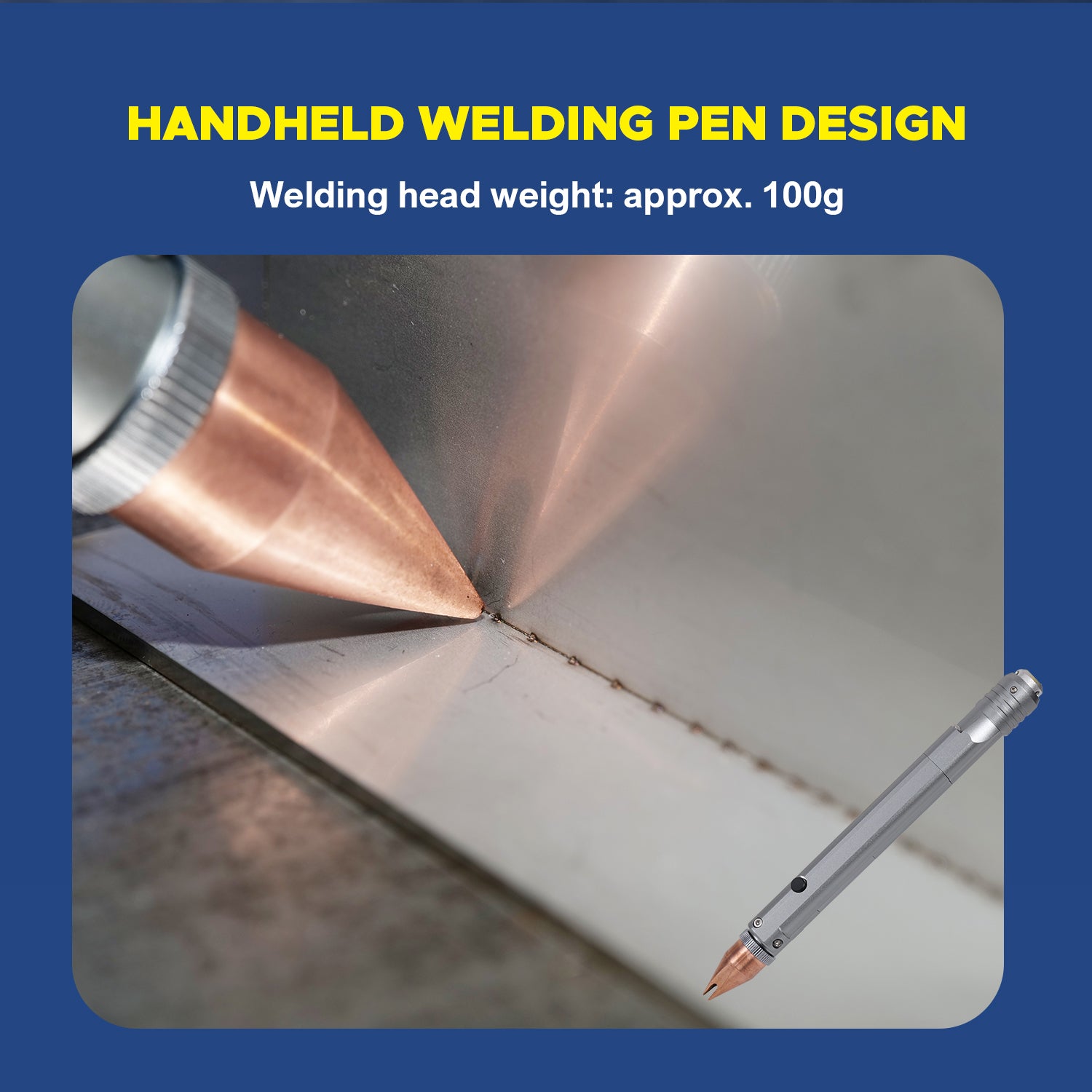

• 2-in-1 WELDING & CUTTING FUNCTION - The portable spot welder supports both welding (0.1–1.5mm) and cutting (0.1–1.2mm). The handheld welding pen weighs only 100g(0.22lb), allowing long working sessions with excellent control and stability. Engineered for micro-fabrication and thin metal welding, delivering accurate and clean welds. Minimal heat-affected zone ensures no deformation and no secondary polishing required

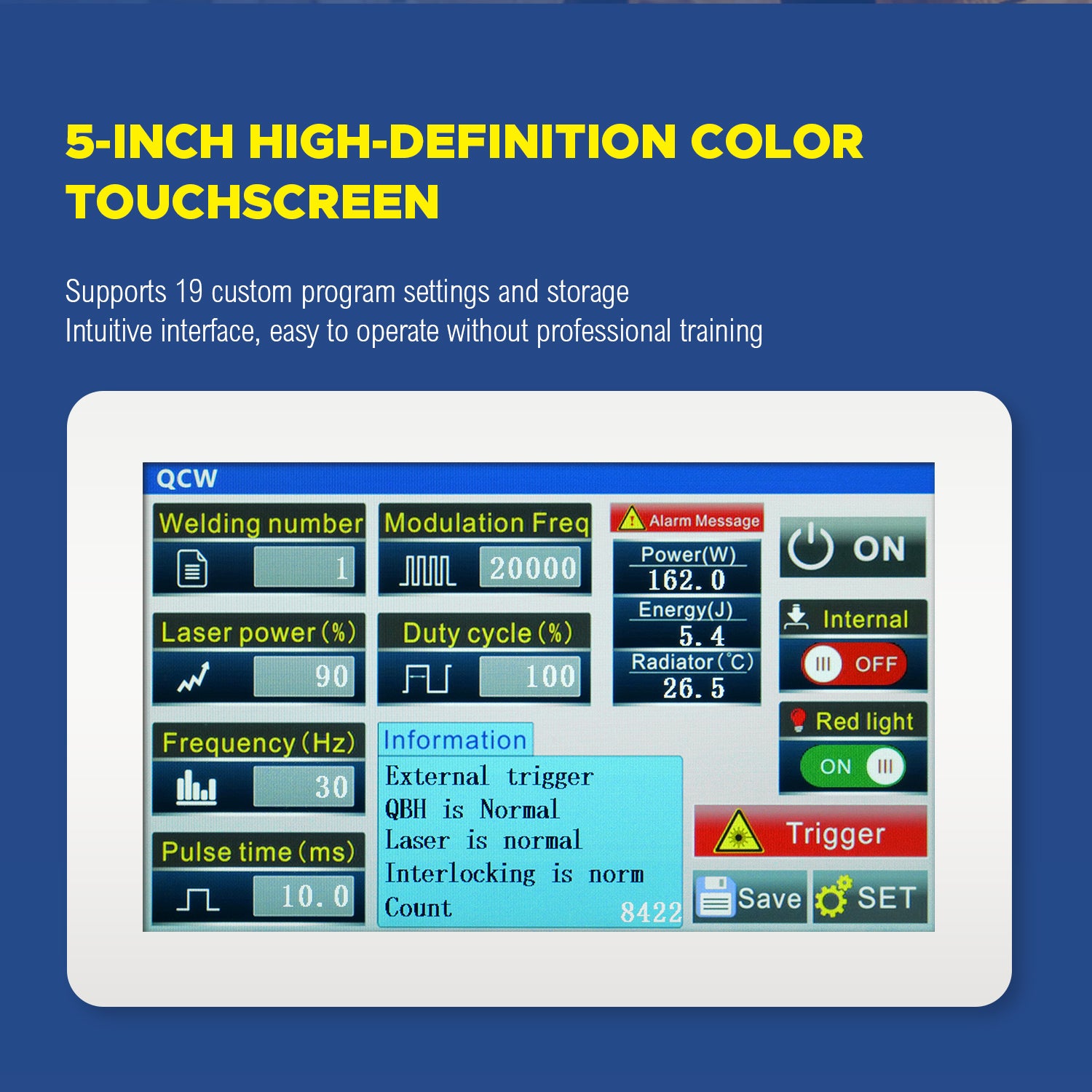

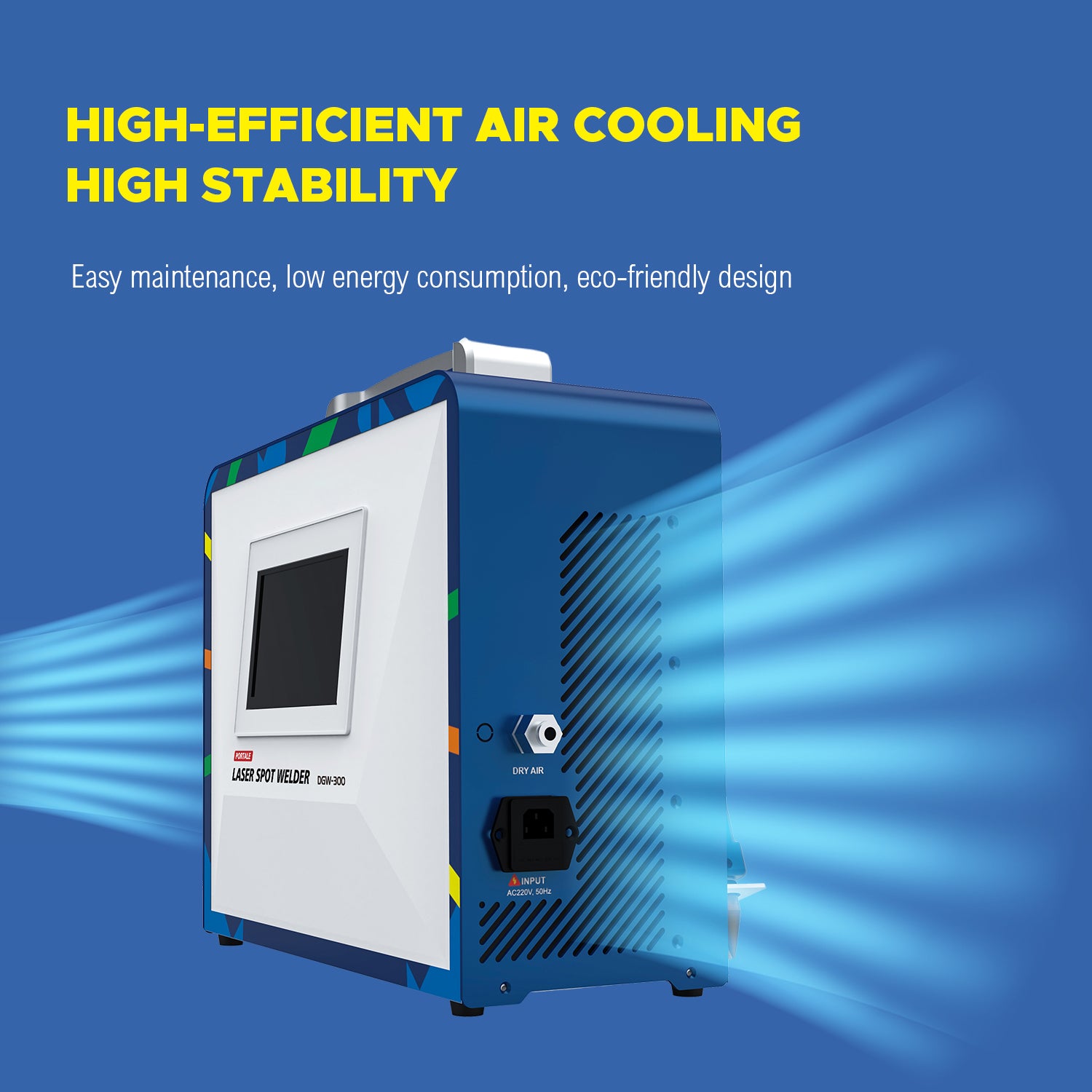

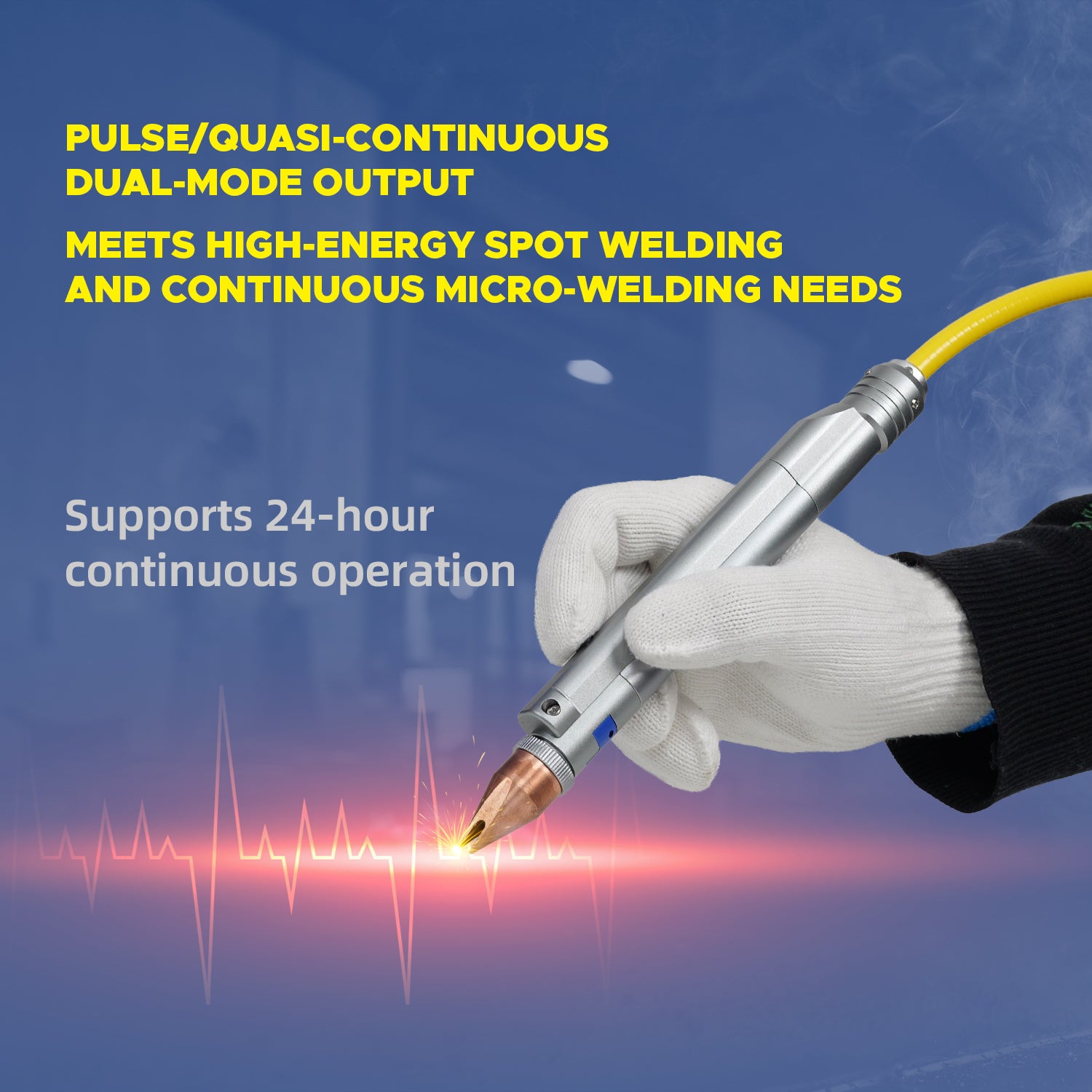

• PULSE & QUASI-CONTINUOUS DUAL MODE OUTPUT - Air cooled laser welder provides high-energy spot welding and continuous micro-welding for different materials and applications. Designed for 24-hour continuous operation with stable and reliable performance. 5" high-definition color display allows quick parameter adjustment and supports up to 19 custom programs. Air-cooled system provides high stability, low energy consumption, and easy maintenance
• APPLICATION - IDY metal welder lightweight 12kg body and 2–3m fiber optic cable offer great flexibility for various working environments. Ideal for advertising signs, lighting fixtures, metal crafts, and DIY creations. Note: Suitable for stainless steel, carbon steel, titanium, and alloys. Not recommended for highly reflective materials such as copper or aluminum.

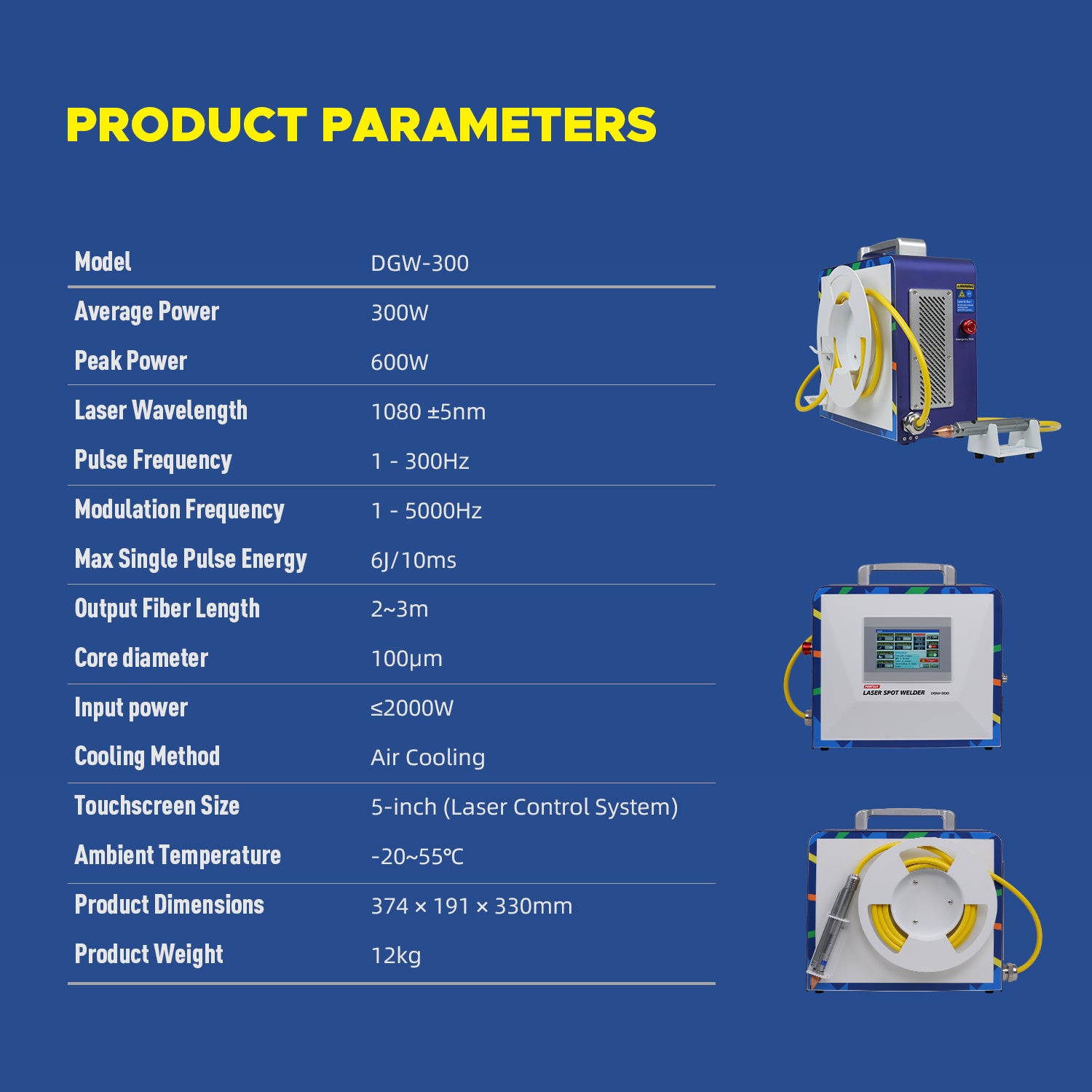

TECHNICAL PARAMETERS

• Model: DGW-300
• Average Power: 300W
• Peak Power: 600W
• Laser Wavelength: 1080 ±5nm
• Pulse Frequency: 1 - 300Hz
• Modulation Frequency: 1 - 5000Hz
• Max Single Pulse Energy: 6J/10ms
• Output Fiber Length: 2~3m
• Core diameter: 100μm
• Input power: ≤2000W
• Cooling Method: Air Cooling
• Touchscreen Size: 5-inch (Laser Control System)
• Ambient Temperature: -20~55°C
• Product Dimensions: 374 × 191 × 330mm/14.7*7.5*13.0 inch
• Product Weight: 12kg/26.5lb
